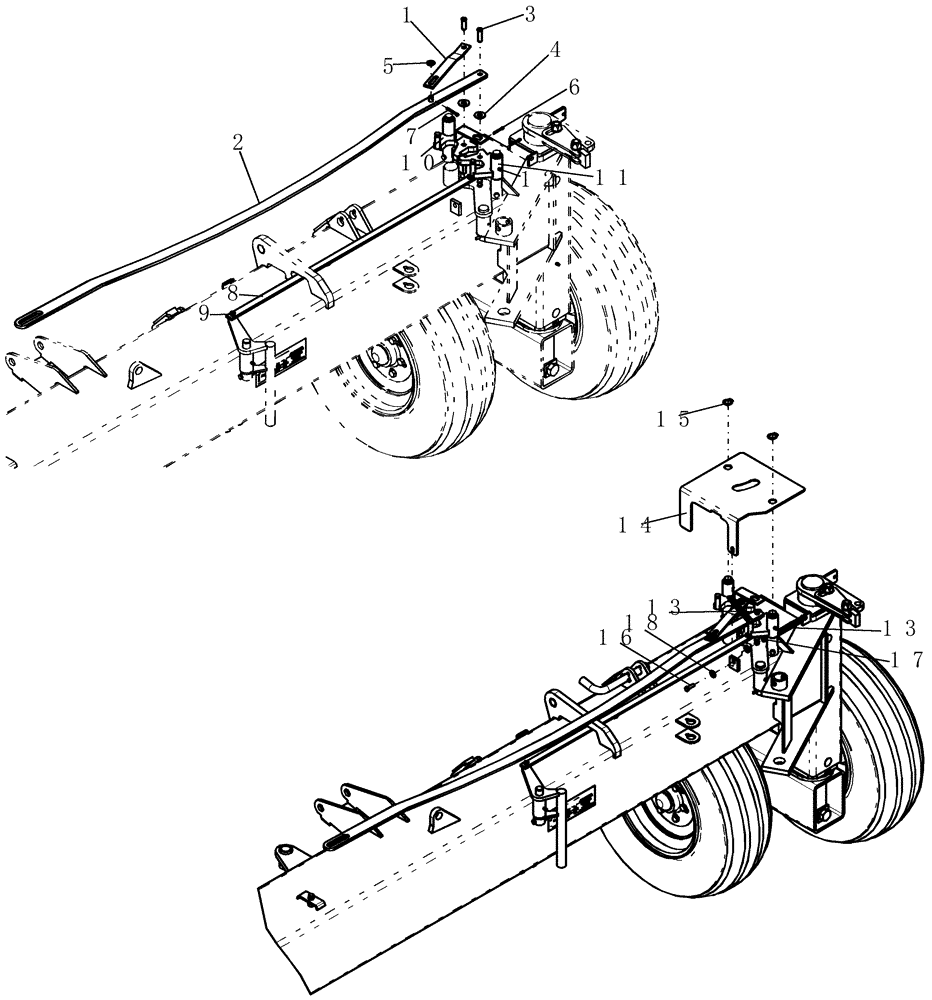

Запчасти Case IH 800 (39.100.08) - LOCKING CASTER (50) PART 2 OF 2 (39) - FRAMES AND BALLASTING

1

87504262

LINK

secondary caster latch

2шт.

2

84230065

ARM

Caster Catch Release RH

1шт.

2

84230063

ARM

Caster Catch Release LH

1шт.

3

427-8175

CLEVIS PIN,1/2" x 1 3/4'"

4шт.

4

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

5

5868

WASHER,0.5" ID x 1" OD x 0.06" Thk

1/2" id 1" 16ga

2шт.

6

86523851

COTTER PIN,5/32" x 1 1/4"

4шт.

7

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

8

87637347

LINK

latch release

2шт.

9

5867

JAM NUT

jam 3/8"-16

4шт.

10

87505136

JAW

caster latch with sensor LH

2шт.

11

87505138

JAW

caster latch with sensor RH

2шт.

12

87414

LUBE NIPPLE,1/4" - 28

4шт.

13

87506299

TENSION SPRING

7/64" wire 7/8" od x 6" long

4шт.

14

87418970

SHIELD

caster latch LH

1шт.

14

87504264

SHIELD

caster latch RH

1шт.

15

87019495

SNAP RING,#98, Ext

4шт.

16

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

17

88902

NUT,3/8"-16

2шт.

18

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.
