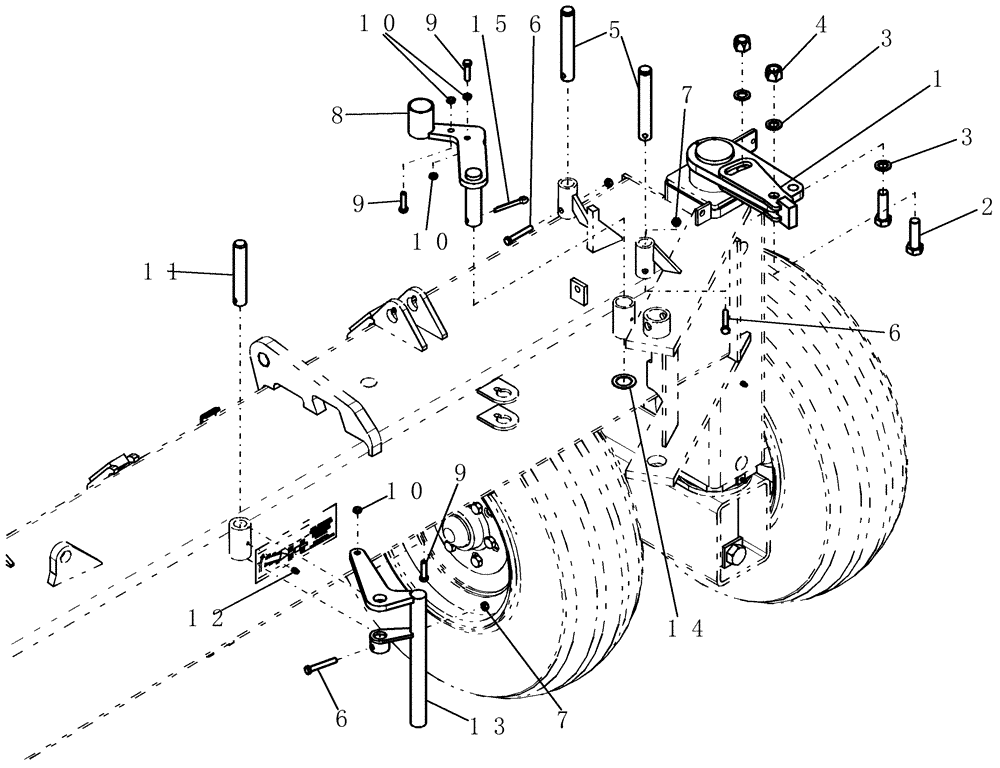

Запчасти Case IH 800 (39.100.07) - LOCKING CASTER (50) PART 1 OF 2 (39) - FRAMES AND BALLASTING

1

87503799

CLEVIS

caster latch

2шт.

2

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

4шт.

3

87325968

WASHER,0.76" ID x 1.25" OD x 0.14" Thk

3/4" id x 1 1/4" 10ga

6шт.

4

280375

NUT,3/4"-10, GC

4шт.

5

87419930

PIN

25.4 x 146ul with hole

4шт.

6

280259

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

6шт.

7

88902

NUT,3/8"-16

6шт.

8

87636234

ARM

caster latch release RH

1шт.

8

87636738

ARM

Caster Latch Release LH

1шт.

9

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

6шт.

10

5867

JAM NUT

jam 3/8"-16

8шт.

11

87503467

PIN

25.4 x 130 ul

2шт.

12

87414

LUBE NIPPLE,1/4" - 28

2шт.

13

87636230

ARM

caster latch release RH

1шт.

13

87636238

ARM

caster latch release LH

1шт.

14

87325445

WASHER,1.25" ID x 1.88" OD x 0.07" Thk

1 1/4" id 1 7/8" 14ga

2шт.

15

3566

COTTER PIN

5/16" x 2"

2шт.
