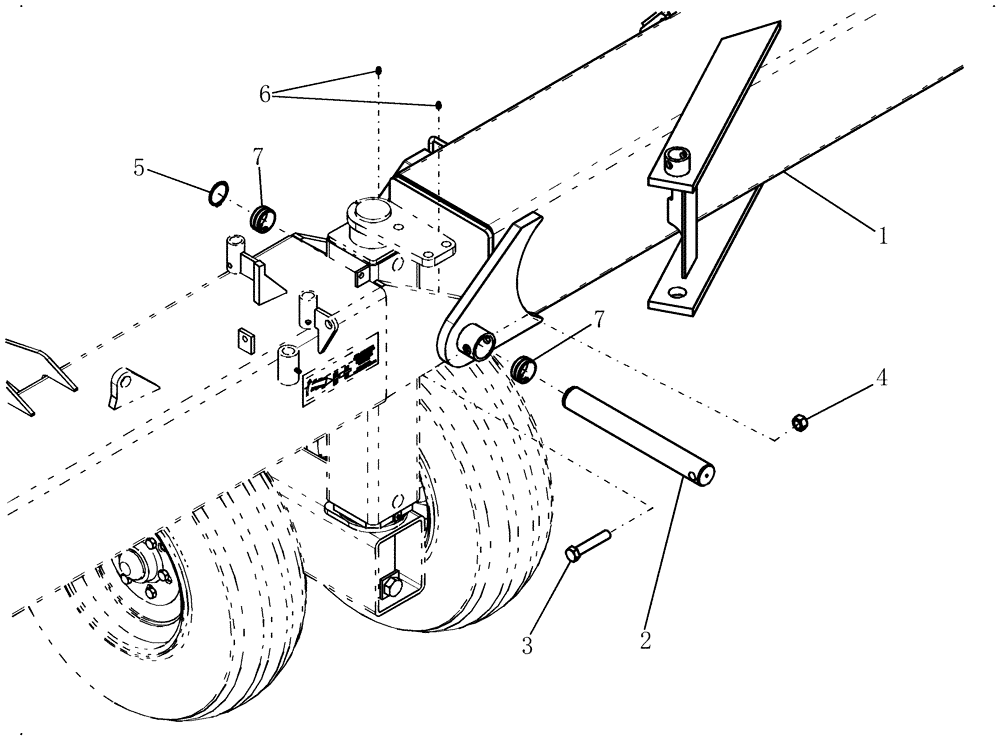

Запчасти Case IH 800 (39.100.06) - OUTER WING CONNECTION (39) - FRAMES AND BALLASTING

1

87701763

BOOM

wing 15' outer LH

1шт.

1

87701767

BOOM

wing 15' outer RH

1шт.

1

87701755

BOOM

wing 10' outer LH

1шт.

1

87701759

BOOM

wing 10' outer RH

1шт.

2

87627114

PIN

outer boom ind hardened

2шт.

3

280210

BOLT,Hex, 3/4"-10 x 4", G5

2шт.

4

280375

NUT,3/4"-10, GC

2шт.

5

103-11200

SNAP RING,#200, Ext

2шт.

6

87414

LUBE NIPPLE,1/4" - 28

4шт.

7

6643

COMPRESSION SPRING,Compression, 59.029mm OD x 60.325mm L

tension 2 1/4" x 2" x 1"

2шт.
