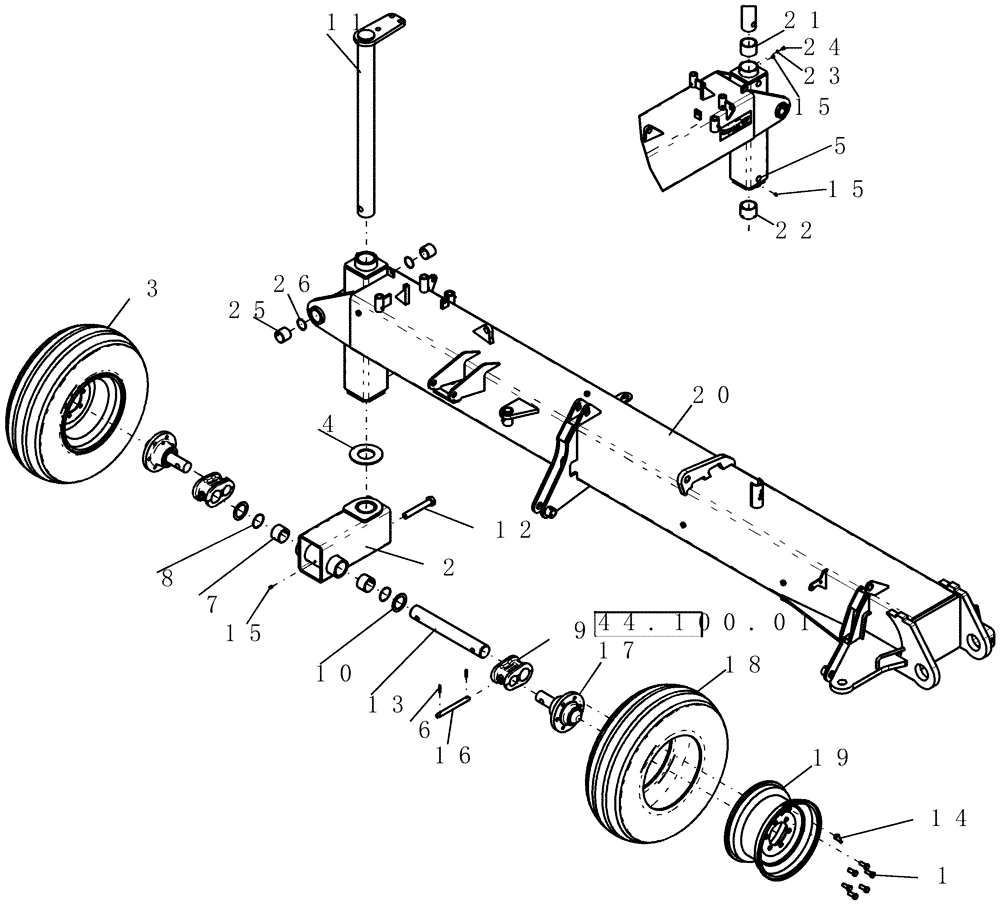

Запчасти Case IH 800 (39.100.05) - BEAM, INNER WING CASTER AND TIRES (60 AND 70) (39) - FRAMES AND BALLASTING
№
Артикул
Название
Примечание
Количество
2
87503795
HOUSING
walk beam locking
1шт.
3
87505470
WHEEL ASSY
15" x 8" 6h with 11l-15fi d
2шт.
Base and Dual option
1шт.
3
87708057
TYRE/TIRE
15" x 10" 6h with 12.5l-15fi d
2шт.
Hi Float option
1шт.
4
432574A1
WEAR PAD
nylon - heavy caster disc
1шт.
5
6565
DECAL
grease 10 hours
1шт.
6
9632
ROLL PIN
1/4" x 1 1/2"
4шт.
7
21981
BUSHING,63.5mm ID x 69.85mm OD x 50.8mm L
tension 2 3/4" x 2 1/2" x 2"
2шт.
8
22413
O-RING,2.5" ID x 2.75" OD x 0.125"
2 1/2" id x 2 3/4" od x 1/8"
2шт.
9
87506497
BEAM
walking, caster
2шт.
10
87504106
WASHER
2 1/2" id 3 1/2" 1/8"
2шт.
11
87503798
TUBE,950 mm L
torsion caster lock
1шт.
12
18681
BOLT,Hex, 1" - 8 x 6 1/2", Gr 5
1шт.
13
87419011
SHAFT
cross walk beam
1шт.
14
196033
VALVE STEM
tr/415
2шт.
Base and Dual option
1шт.
14
1018564
VALVE
tire stem
2шт.
Hi Float option
1шт.
15
219-8
LUBE NIPPLE,1/4" - 28 NPTF
2шт.
16
87503793
PIN
walking beam
2шт.
17
87505492
HUB
H615-1 assembly with cups and bolts
2шт.
Refer to 44.100.01
1шт.
18
3474
TYRE/TIRE
11l x 15 fi - d load range
2шт.
Base and Dual option
1шт.
18
1864
TYRE/TIRE
12 1/2 L x 15 fi - 8 ply
2шт.
Hi Float option
1шт.
19
87505456
RIM
15" x 8" - 6 hole
2шт.
Base and Dual option
1шт.
19
87505450
RIM
15X10LB 6 hole +1 1/8" offset
2шт.
Hi Float option
1шт.
20
87701746
BOOM
wing 15' inner LH
1шт.
20
87701750
BOOM
wing 15' inner RH
1шт.
Not Shown
1шт.
21
87501820
BUSHING,76.2mm ID x 88.9mm OD x 63.5mm L
Nylatron* 3 1/2" x 3" x 2 1/2" long
1шт.
22
87501820
BUSHING,76.2mm ID x 88.9mm OD x 63.5mm L
Nylatron* 3 1/2" x 3" x 2 1/2" long
1шт.
23
80682
LOCK WASHER,1/4"
1шт.
24
80280640
BOLT
1/4"-20 x 1/2" G5
1шт.
25
87503734
GROOVED BUSHING
tension 2 1/4" x 2" x 2" lg
2шт.
Выбрано товаров: 41
