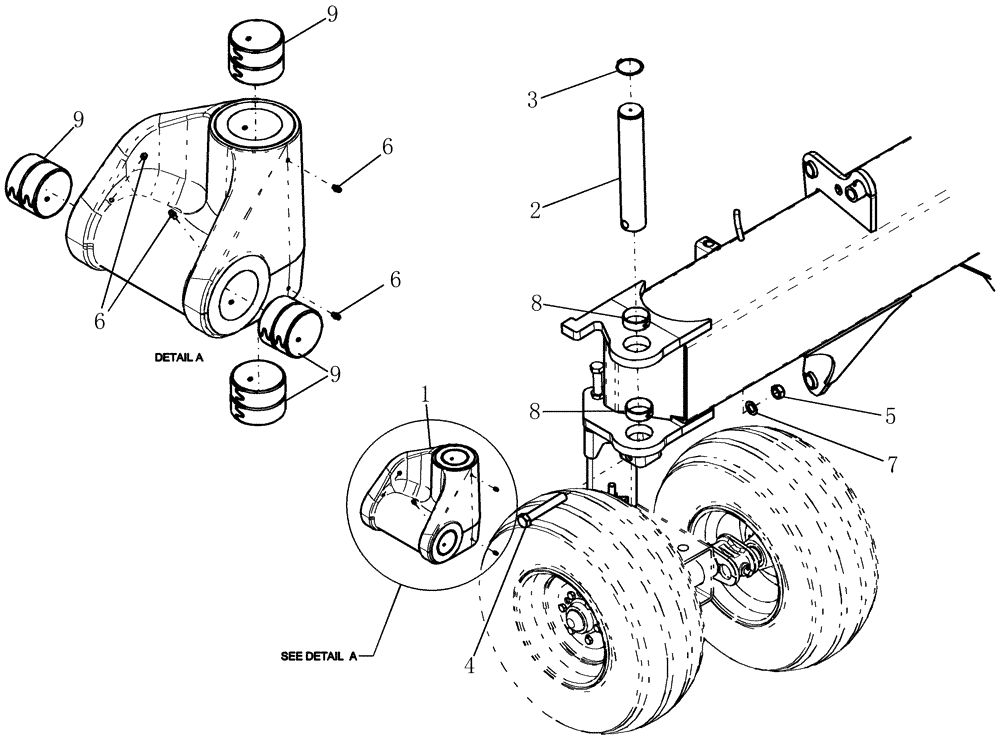

Запчасти Case IH 800 (39.100.02) - BEAM, CENTER U-JOINT (39) - FRAMES AND BALLASTING

1

87418855

KNUCKLE

ASSY. cast LH machined with bushings

1шт.

1

87418856

KNUCKLE

ASSY. cast RH machined with bushings

1шт.

2

87597581

PIN

center section boom

2шт.

3

87016930

SNAP RING,#300, Ext

2шт.

4

18681

BOLT,Hex, 1" - 8 x 6 1/2", Gr 5

2шт.

5

280286

NUT,1"-8, GB

2шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

8шт.

7

6669

WASHER,1.06" ID x 1.75" OD x 0.13" Thk

2шт.

8

87419948

BUSHING,76.2mm ID x 82.55mm OD x 31.75mm L

tension 3 1/4" x 3" x 1 1/4" lg

2шт.

9

87419947

GROOVED BUSHING,76.45mm ID x 82.55mm OD x 63.5mm L

tension 3 1/4" x 3" x 2 1/2" lg

4шт.
