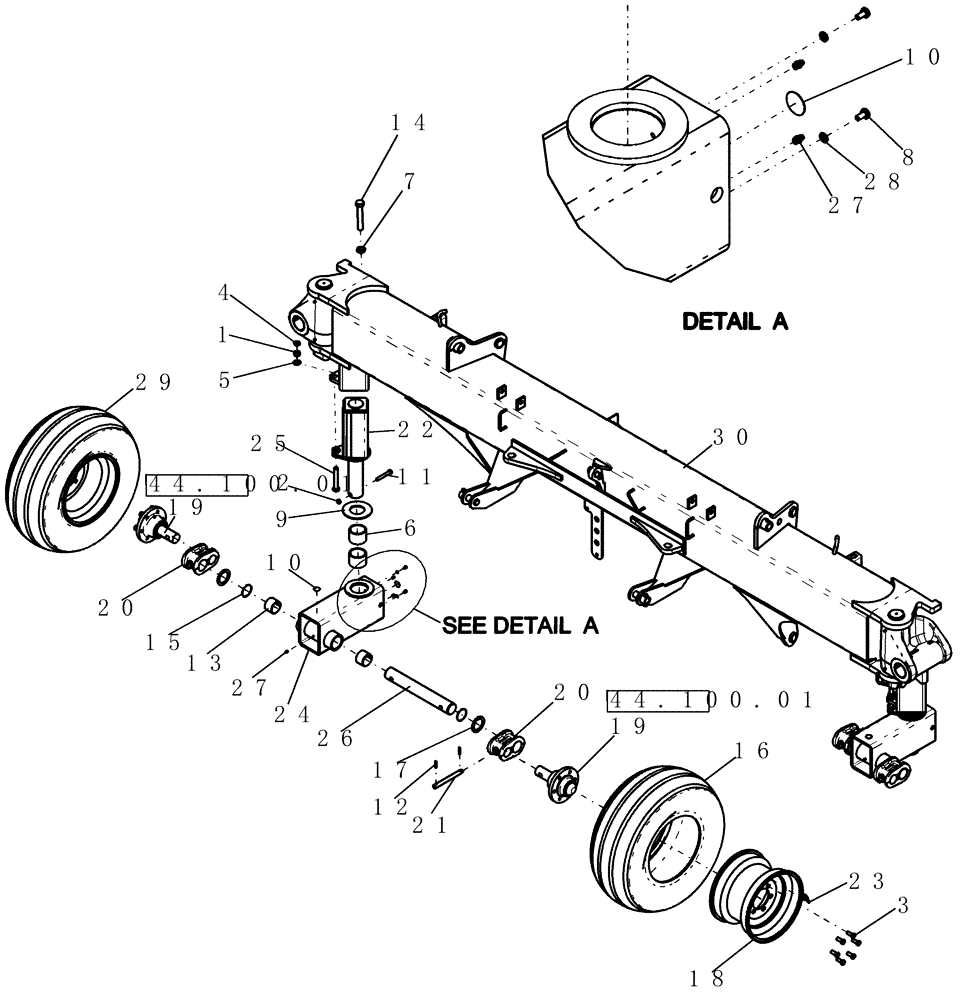

Запчасти Case IH 800 (39.100.01) - BEAM, CENTER CASTER AND TIRES (39) - FRAMES AND BALLASTING

1

280954

NUT,3/4"-10, G5

1шт.

2

86992215

LOCK NUT,1/2"-13, GC

1шт.

3

86628557

WHEEL BOLT,Hex Csk, 9/16" - 18 x 1 1/8", HTS

12шт.

4

86632557

JAM NUT,Jam, 3/4"-10, G5

1шт.

5

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

6

87501820

BUSHING,76.2mm ID x 88.9mm OD x 63.5mm L

Nylatron* 3 1/2" x 3" x 2 1/2" long

2шт.

7

87553819

JAM NUT

1"-8 Hex, Jam

1шт.

8

80280640

BOLT

1/4"-20 x 1/2" G5

2шт.

9

432574A1

WEAR PAD

nylon - heavy caster disc

1шт.

10

6565

DECAL

grease 10 hours

2шт.

11

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

1шт.

12

9632

ROLL PIN

1/4" x 1 1/2"

4шт.

13

21981

BUSHING,63.5mm ID x 69.85mm OD x 50.8mm L

tension 2 3/4" x 2 1/2" x 2"

2шт.

14

22236

BOLT,Hex, 1" - 8 x 6", Gr 5, Full Thd

1шт.

15

22413

O-RING,2.5" ID x 2.75" OD x 0.125"

2 1/2" id x 2 3/4" od x 1/8"

2шт.

16

400602A1

TYRE/TIRE

11L X 15 FI - F load range

2шт.

Base and Dual option

1шт.

For 50', 60', and 70' models

1шт.

16

1864

TYRE/TIRE

12 1/2 L x 15 fi - 8 ply

2шт.

Hi Float option

1шт.

For 50', 60', and 70' models

1шт.

17

87504106

WASHER

2 1/2" id 3 1/2" 1/8"

2шт.

18

87696829

RIM

15 x 8 6H w/VG +1 1/8" offset

2шт.

Base and Dual option

1шт.

For 50', 60', and 70' models

1шт.

18

87698703

RIM

15 x 10 6H w/VG +1 1/8" offset

2шт.

Hi Float option

1шт.

For 50', 60', and 70' models

1шт.

19

87505492

HUB

H615-1 assembly with cups and bolts

2шт.

Refer to 44.100.01

1шт.

20

87506497

BEAM

walking, caster

2шт.

21

87503793

PIN

walking beam

2шт.

22

87503904

SLIDE

wheel standard center boom

1шт.

23

1018564

VALVE

tire stem

2шт.

Hi Float option

1шт.

23

22802

VALVE

stem tire tr/801 hp

2шт.

Base and Dual option

1шт.

24

87503852

HOUSING

walking beam

1шт.

25

6717

BOLT,Hex, 3/4" - 10 x 5", Gr 5, Full Thd

1шт.

26

87419011

SHAFT

cross walk beam

1шт.

27

87414

LUBE NIPPLE,1/4" - 28

3шт.

28

80682

LOCK WASHER,1/4"

2шт.

29

87696831

TYRE/TIRE

15 x 8 6H w/11L - 15fi F

2шт.

For 50', 60', and 70' models

1шт.

Includes 400602A1 and 87696829

1шт.

29

87696880

TYRE/TIRE

15 x 10 6H w/12.5L - 15fi D

2шт.

For 50', 60', and 70' models

1шт.

Includes 1864 and 87698703

1шт.

30

84178259

BOOM

Center Section

1шт.
