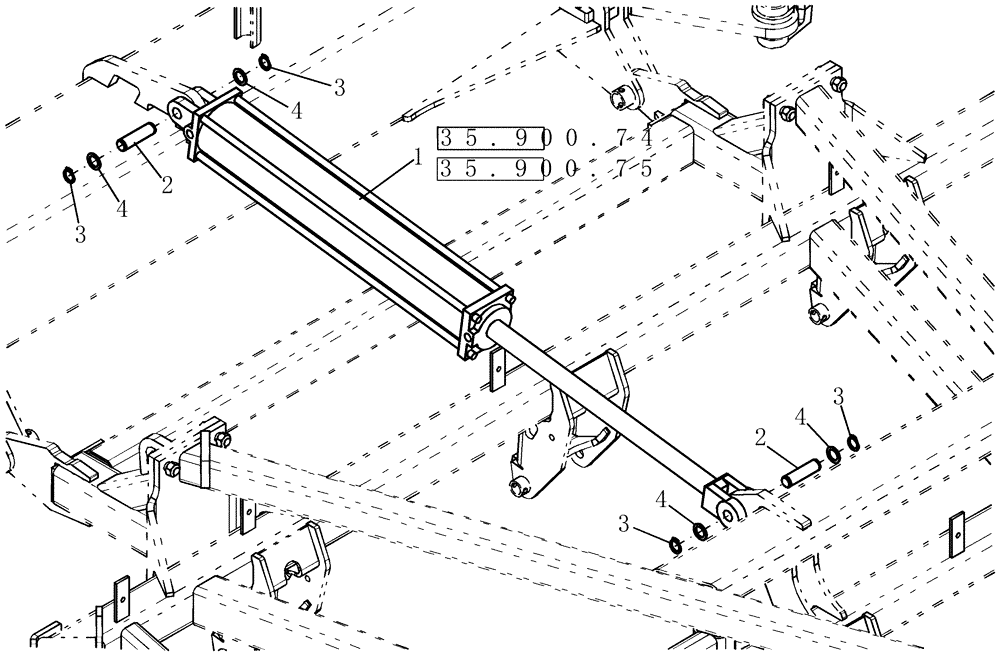

Запчасти Case IH 800 (35.900.81) - TOOLBAR CYLINDERS (35) - HYDRAULIC SYSTEMS

1

87637327

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 762mm Stroke

4 1/2" x 30", 3000 psi, No Pins

1шт.

60' inner wing, 70' inner and outer wing

1шт.

Refer to 35.900.75

1шт.

1

87637349

HYDRAULIC CYLINDER,44.45mm Rod, 762mm Stroke

4" x 30", 3000 psi, No Pins

1шт.

60' outer wing, 50' inner and outer wing frame

1шт.

Refer to 35.900.74

1шт.

2

8972

PIN

cylinder, 1" x 3 3/8" ul with snap ring groove (#437324)mo

2шт.

60' inner wing, 70' inner and outer wing

1шт.

2

3326

PIN

cylinder 1" x 2 7/8" ul hardened with snap rings

2шт.

60' outer wing, 50' inner and outer wing frame

1шт.

3

87019495

SNAP RING,#98, Ext

4шт.

60' inner wing, 70' inner and outer wing

1шт.

3

87019495

SNAP RING,#98, Ext

4шт.

60' outer wing, 50' inner and outer wing frame

1шт.

4

87325444

WASHER,1.02" ID x 1.5" OD x 0.07" Thk

1 1/64" id 1 1/2" 14ga

4шт.

60' inner wing, 70' inner and outer wing

1шт.

4

86624168

WASHER,1.03" ID x 1.5" OD x 0.03" Thk

4шт.

60' outer wing, 50' inner and outer wing frame

1шт.
