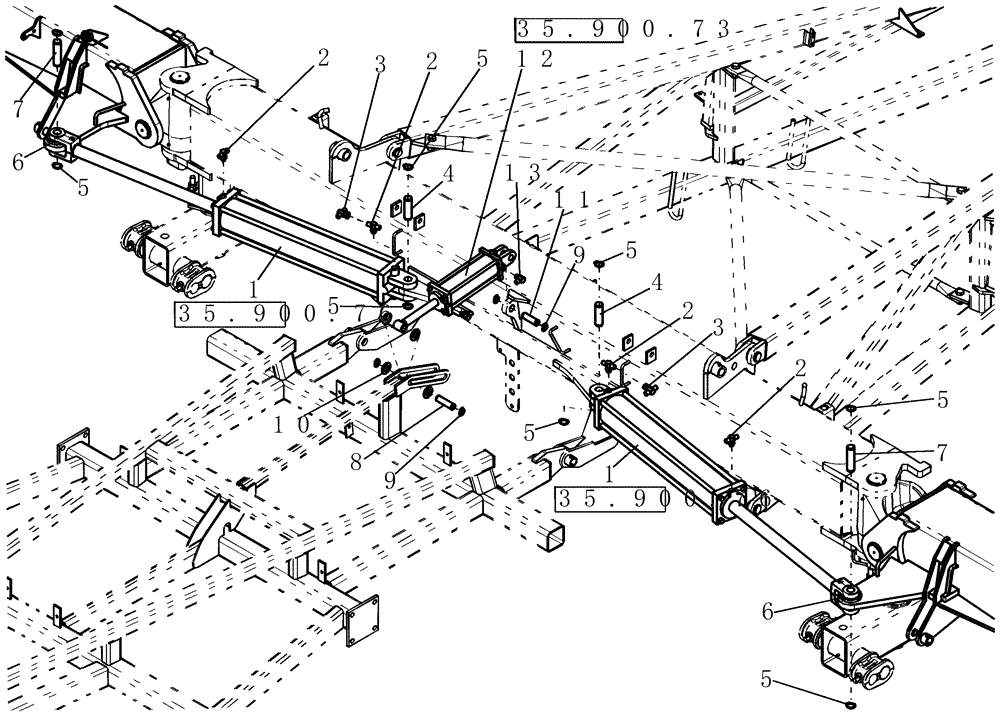

Запчасти Case IH 800 (35.900.78) - CENTER BOOM - HYDRAULIC CYLINDERS (35) - HYDRAULIC SYSTEMS

1

87504468

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 762mm Stroke

5" x 30" mon 3000 psi without pins

2шт.

Refer to 35.900.76

1шт.

2

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

4шт.

3

86513015

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

4

87504359

PIN

cylinder 31.75 mm x 93 mm ul hardened (1.25" X 3.625")

2шт.

5

86625148

SNAP RING,#125, Ext

8шт.

6

87504120

WEAR PAD

air cart hitch

2шт.

7

87505139

PIN

cylinder 31.75 mm x 111 mm ul hardened (1.25" X 4.313")

2шт.

8

8972

PIN

cylinder, 1" x 3 3/8" ul with snap ring groove (#437324)mo

1шт.

9

87019495

SNAP RING,#98, Ext

4шт.

10

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

4шт.

11

3326

PIN

cylinder 1" x 2 7/8" ul hardened with snap rings

1шт.

12

84174458

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3 1/2" x 8" Rod Pivot Eye

1шт.

Refer to 35.900.73

1шт.

13

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.
