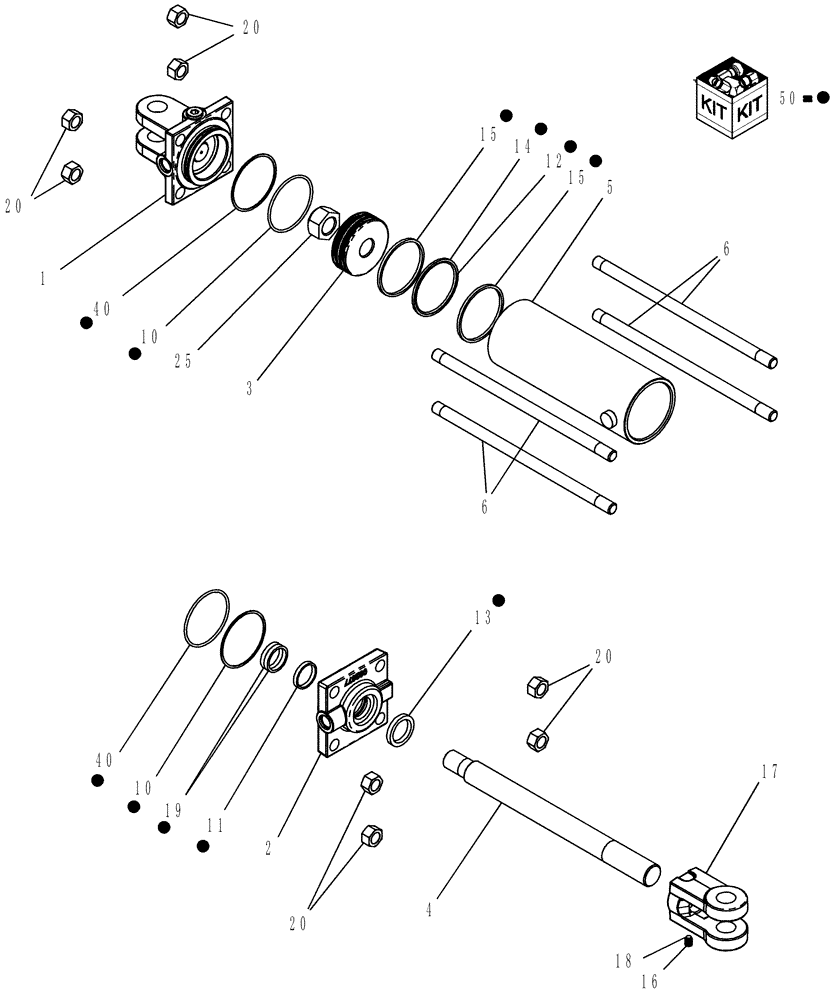

Запчасти Case IH 800 (35.900.75) - HYDRAULICS - CYLINDER 87637327, 4 1/2" X 30" - MONARCH (35) - HYDRAULIC SYSTEMS

0

87637327

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 762mm Stroke

4 1/2" x 30", 3000 psi, No Pins

1шт.

1

87409434

HEAD

cylinder base 4 1/2" bore

1шт.

2

84261549

CAP

Cylinder End, 1 3/4" Rod, 4 1/2" Tube

1шт.

3

87409474

PISTON

cylinder 4 1/2" bore

1шт.

4

84261552

PISTON ROD

1 3/4", Monarch

1шт.

5

84261553

HYD TUBE,4.50" DIA x 30.00" L

4 1/2" Cylinder, Monarch

1шт.

6

84261554

TIE-ROD

Monarch #492360

4шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

Included in seal kit 87409042

1шт.

11

NSS

NOT SOLD SEPARAT

U-Cup Rod Seal

1шт.

Included in seal kit 87409042

1шт.

12

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

Included in seal kit 87409042

1шт.

13

NSS

NOT SOLD SEPARAT

Rod Wiper

1шт.

Included in seal kit 87409042

1шт.

14

NSS

NOT SOLD SEPARAT

PTFE Seal

1шт.

Included in seal kit 87409042

1шт.

15

NSS

NOT SOLD SEPARAT

Wear Ring

2шт.

Included in seal kit 87409042

1шт.

16

1029632

PLUG

nylon 5/16" od x 1/4" pln solid

1шт.

Included in seal kit 87409042

1шт.

17

8945

CLEVIS

cyl rod, Monarch 1 pin (#492658)

1шт.

18

84212867

SET SCREW

3/8"-16

1шт.

19

NSS

NOT SOLD SEPARAT

Wear Ring

2шт.

Included in seal kit 87409042

1шт.

20

86643107

NUT,5/8" - 18, Gr 8

5/8"-18, G8

8шт.

25

232-46318

LOCK NUT,1 1/8"-12, GC

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

40

NSS

NOT SOLD SEPARAT

O-Ring Back-up

2шт.

Included in seal kit 87409042

1шт.

50

84261857

SEAL KIT

4 1/2" Cylinder, Monarch

1шт.

Includes Refs. 10, 11, 13, 14, 15, 19, 40

1шт.
