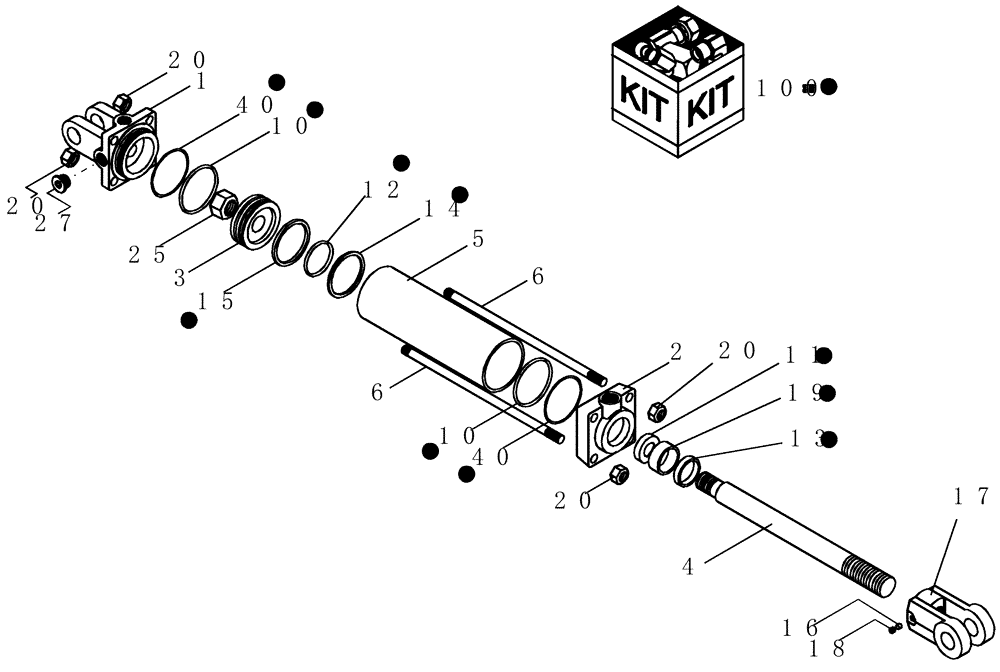

Запчасти Case IH 800 (35.900.72) - HYDRAULICS - CYLINDER 86994102, 3" X 8" - MONARCH (35) - HYDRAULIC SYSTEMS

0

86994102

HYDRAULIC CYLINDER,Double Acting, 34.92mm Rod, 203.2mm Stroke

3" x 8" 3000 psi da

1шт.

1

87409445

HEAD

cylinder base 3" bore

1шт.

2

87409684

CYLINDER END CAP

front 3" bore x 1 3/8" rod

1шт.

3

87409478

PISTON

cylinder 3" bore Monarch #494734

1шт.

4

87409686

PISTON ROD

1 3/8" Nitrosteel

1шт.

5

NSS

NOT SOLD SEPARAT

cylinder tube

1шт.

6

87409688

TIE-ROD

1/2"-13 for 8" Monarch #492278

4шт.

10

NSS

NOT SOLD SEPARAT

O-RING

2шт.

Included in seal kit 87409036

1шт.

11

NSS

NOT SOLD SEPARAT

U-CUP ROD SEAL

1шт.

Included in seal kit 87409036

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included in seal kit 87409036

1шт.

13

NSS

NOT SOLD SEPARAT

ROD WIPER

1шт.

Included in seal kit 87409036

1шт.

14

NSS

NOT SOLD SEPARAT

PTFE SEAL

1шт.

Included in seal kit 87409036

1шт.

15

NSS

NOT SOLD SEPARAT

WEAR RING

1шт.

Included in seal kit 87409036

1шт.

16

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad, clevis set screw

1шт.

17

87409387

CLEVIS,1 -1/4" - 12

cylinder 1" pin 1 1/4"-12 rod Monarch #492652

1шт.

18

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

20

280431

NUT,1/2"-13, G5

8шт.

25

87314800

LOCK NUT

1"-14, GA

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

40

NSS

NOT SOLD SEPARAT

O-RING BACKUP

2шт.

Included in seal kit 87409036

1шт.

100

87409036

SEAL KIT

hydraulic cylinder 3" Monarch 1 3/8" rod

1шт.
