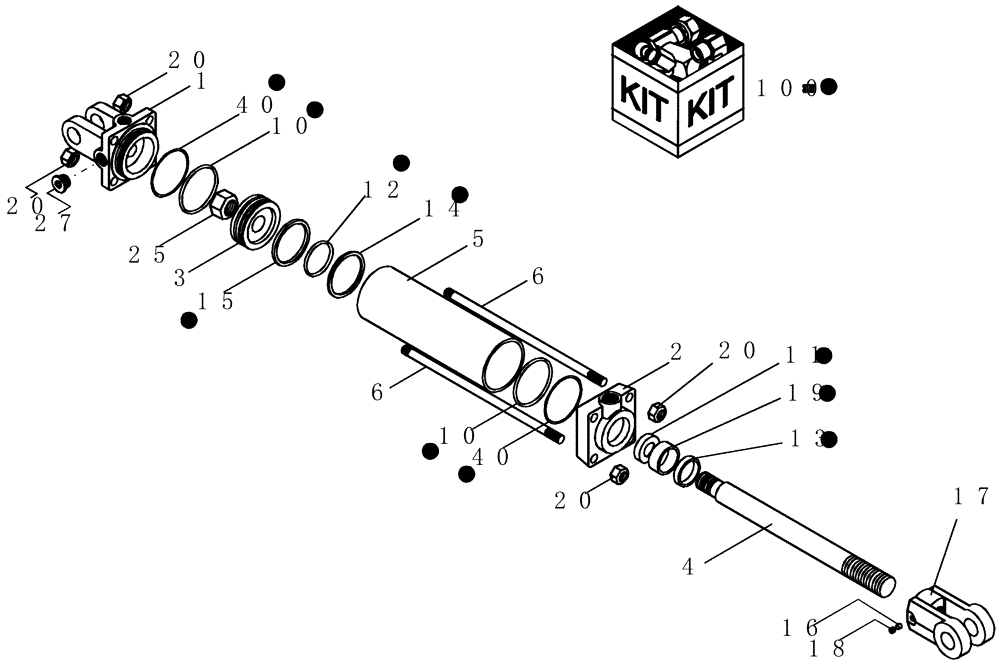

Запчасти Case IH 800 (35.900.71) - HYDRAULICS - CYLINDER 87419786, 3" X 4" - MONARCH (35) - HYDRAULIC SYSTEMS

0

87419786

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 101.6mm Stroke

3" x 4" 3000 psi no pins

1шт.

1

87409445

HEAD

cylinder base 3" bore

1шт.

2

87582273

CYLINDER END CAP

3" rod end

1шт.

3

87582272

PISTON

3" cylinder

1шт.

4

22214

SHAFT

cylinder, 3" x 4" Monarch

1шт.

5

22212

TUBE

Cylinder, 3" x 4" Monarch

1шт.

6

87582271

TIE-ROD

3 x 4 cylinder

4шт.

16

1029632

PLUG

nylon 5/16" od x 1/4" pln solid

1шт.

17

87409387

CLEVIS,1 -1/4" - 12

cylinder 1" pin 1 1/4"-12 rod Monarch #492652

1шт.

18

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

20

280431

NUT,1/2"-13, G5

8шт.

25

87314800

LOCK NUT

1"-14, GA

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

100

25833007

SEAL KIT

3"

1шт.
