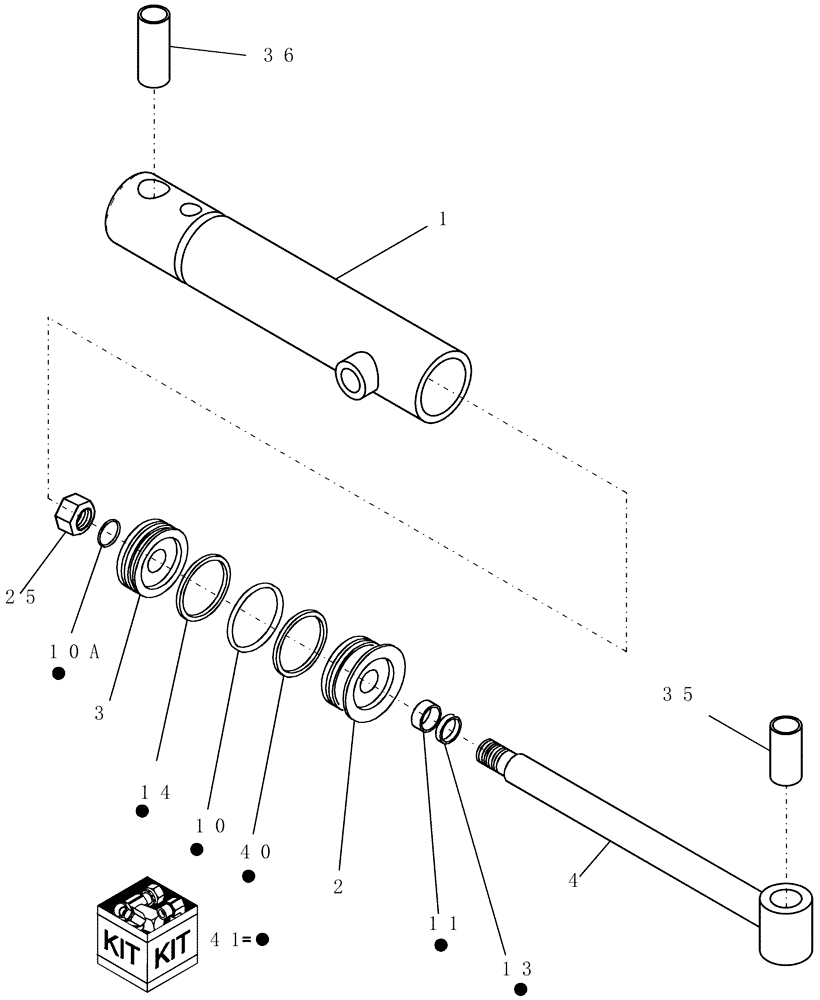

Запчасти Case IH 800 (35.900.70) - HYDRAULICS - CYLINDER 87737800, 1 1/2" X 6 3/8" - MONARCH (35) - HYDRAULIC SYSTEMS

0

87737800

HYDRAULIC CYLINDER,Double Acting, 25.4mm Rod, 162.05mm Stroke

1 1/2" x 5 1/2" inner

1шт.

87737800R

REMAN-HYD CYLINDER

800 (12/09-)

1шт.

87737800C

CORE-HYD CYLINDER

Return Number

1шт.

1

84262412

HYD TUBE,6.38" L

Cylinder, 1 1/2" x 6 3/8" Monarch #470664

1шт.

2

87034454

HEAD

Cylinder, 1 1/'2", Monarch #258231

1шт.

3

87029766

PISTON,1/2" ID x 1-1/2" OD x 1/2" Thk

1 1/2", Monarch #296424

1шт.

4

84262414

PISTON ROD

Monarch #498007

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

10a

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Rod Seal

1шт.

13

NSS

NOT SOLD SEPARAT

Rod Wiper

1шт.

25

88130

NUT,1/2"-20, GC

1шт.

35

87737801

BUSHING

Composite .75 x .625 x 1" Long

1шт.

36

87737802

BUSHING

Composite .75 x .625 x 1.8" Long

1шт.

40

NSS

NOT SOLD SEPARAT

Back-up Washer

1шт.

41

84262415

SEAL KIT

Cylinder, 1 1/2", Monarch #646181

1шт.
