(35.900.66) - HYDRAULICS - BOOM TO TOOLBAR FRAME 70

Запчасти Case IH 800 (35.900.66) - HYDRAULICS - BOOM TO TOOLBAR FRAME 70 (35) - HYDRAULIC SYSTEMS

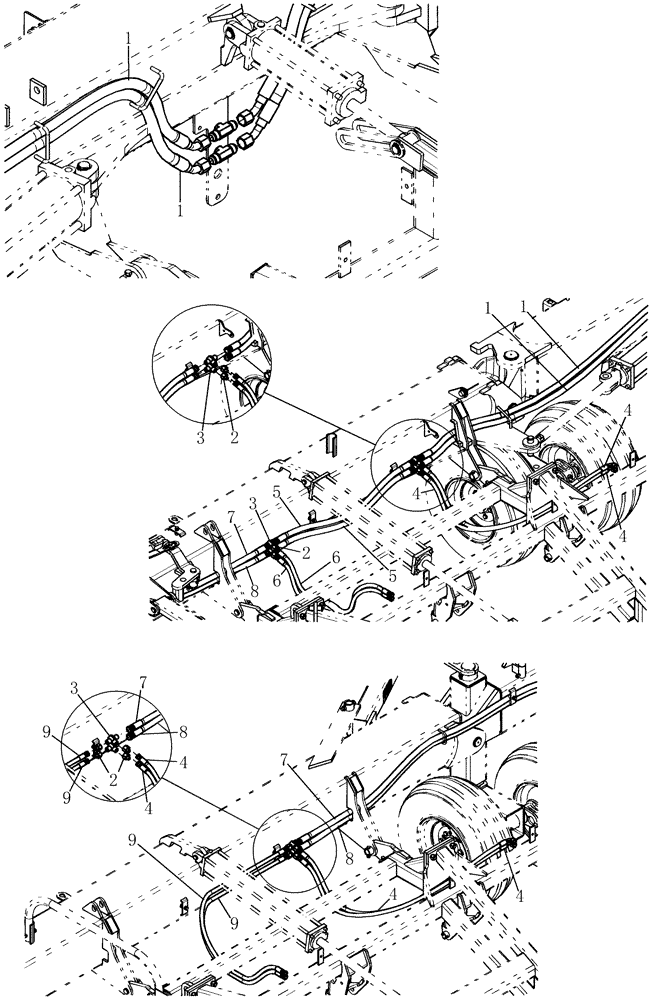

Схема запчастей Case IH 800 - (35.900.66) - HYDRAULICS - BOOM TO TOOLBAR FRAME 70 (35) - HYDRAULIC SYSTEMS
8
2
7
8
8
9
7
4
7
6
1
1
4
2
4
3
3
1
4
3
9
9
4
2
6
4
9
5
1
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87721065

HYDRAULIC HOSE

19 mm x 3200 mm fl

4шт.

2

87648720

REDUCER,3/4" - 16 JIC x 1-11/16" - 12 JIC

37º, 1 1/16"-12, Fem x 3/4"-16 Male

12шт.

3

80015694

TEE,1 1/16"-12 37 Degree

8шт.

4

84247991

HYDRAULIC HOSE

12.5 mm x 1780 mm fl

8шт.

5

87721071

HYDRAULIC HOSE

19 mm x 1200 mm fl

4шт.

6

1304245C2

HYDRAULIC HOSE

1/2" x 37" fl

4шт.

7

84172272

HYDRAULIC HOSE

19 mm x 3580 mm fl

2шт.

8

84172272

HYDRAULIC HOSE

19 mm x 2950 mm fl

2шт.

9

195869C2

HYDRAULIC HOSE

1/2" x 75" fl

4шт.

Выбрано товаров: 9
