(35.900.65) - HYDRAULICS - BOOM TO TOOLBAR FRAME 60

Запчасти Case IH 800 (35.900.65) - HYDRAULICS - BOOM TO TOOLBAR FRAME 60 (35) - HYDRAULIC SYSTEMS

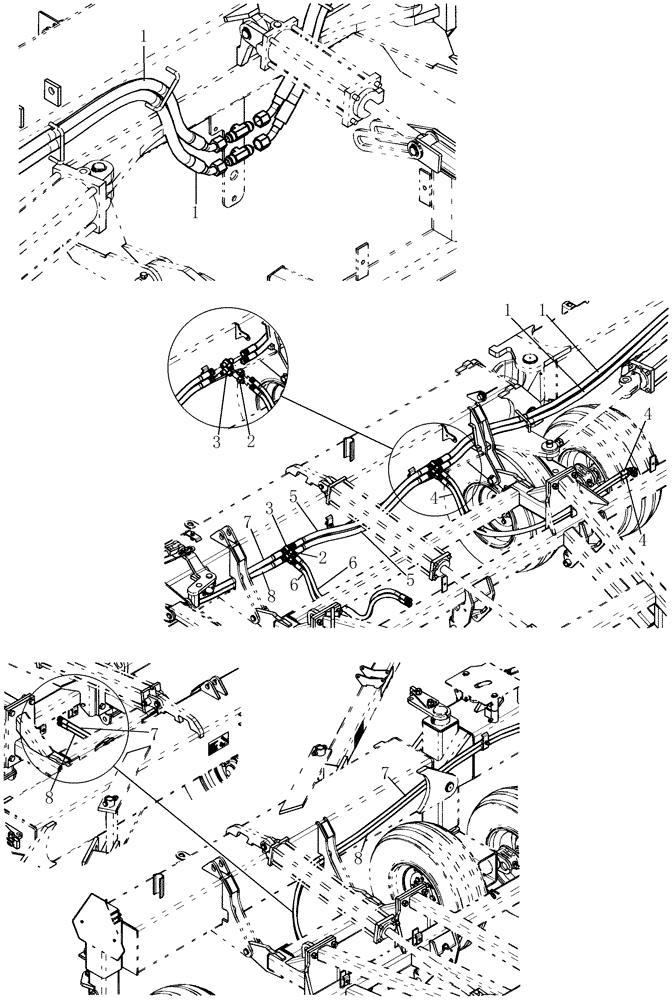

Схема запчастей Case IH 800 - (35.900.65) - HYDRAULICS - BOOM TO TOOLBAR FRAME 60 (35) - HYDRAULIC SYSTEMS
1
7
2
4
7
2
7
3
8
1
8
6
3
1
5
6
1
8
5
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87721065

HYDRAULIC HOSE

19 mm x 3200 mm fl

4шт.

2

87648720

REDUCER,3/4" - 16 JIC x 1-11/16" - 12 JIC

37º, 1 1/16"-12, Fem x 3/4"-16 Male

8шт.

3

80015694

TEE,1 1/16"-12 37 Degree

8шт.

4

84247991

HYDRAULIC HOSE

12.5 mm x 1780 mm fl

4шт.

5

87721071

HYDRAULIC HOSE

19 mm x 1200 mm fl

4шт.

6

1304245C2

HYDRAULIC HOSE

1/2" x 37" fl

4шт.

7

1023091

HYDRAULIC HOSE

1/2" x 162" fl

2шт.

8

1023091

HYDRAULIC HOSE

1/2" x 162" fl

2шт.

Выбрано товаров: 8
