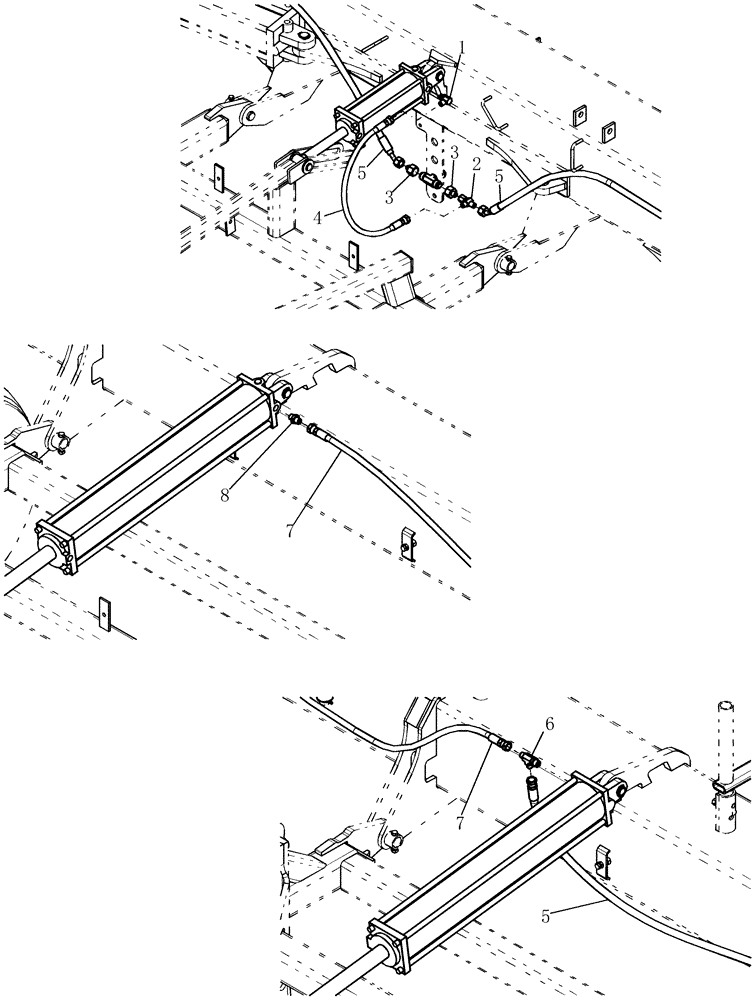

Запчасти Case IH 800 (35.900.61) - HYDRAULICS - WING BOOM LOWER (35) - HYDRAULIC SYSTEMS

1

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

2

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

3

87648720

REDUCER,3/4" - 16 JIC x 1-11/16" - 12 JIC

37º, 1 1/16"-12, Fem x 3/4"-16 Male

2шт.

4

84184565

HYDRAULIC HOSE

10 mm x 825 mm fl

1шт.

5

87721044

HYDRAULIC HOSE

10 mm x 3810 mm fl

2шт.

50' Model only

1шт.

5

87721049

HYDRAULIC HOSE

10 mm x 4570 mm fl

2шт.

60' and 70' Models only

1шт.

6

265808

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

7

87721048

HYDRAULIC HOSE

10 mm x 3505 mm fl

2шт.

50' Model only

1шт.

7

1032442

HYDRAULIC HOSE

3/8" x 168" fl

2шт.

60' Model

1шт.

7

87737848

HYDRAULIC HOSE

10 mm x 5010 mm fl

2шт.

70' Model

1шт.

8

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

2шт.
