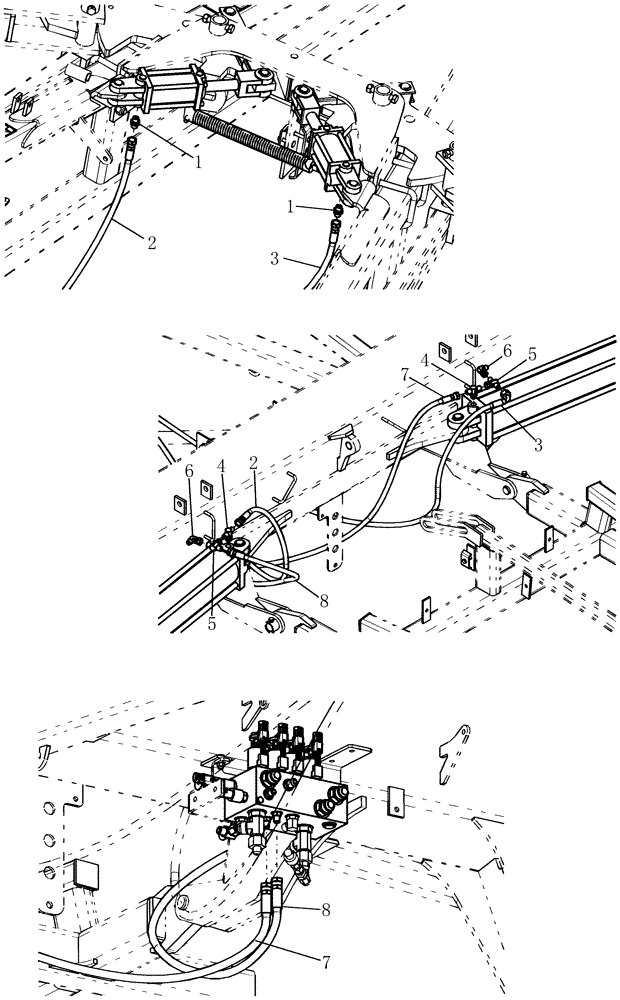

Запчасти Case IH 800 (35.900.58) - HYDRAULICS - CENTER SECTION BOOM 1 OF 2 (35) - HYDRAULIC SYSTEMS

1

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

2шт.

2

1032442

HYDRAULIC HOSE

3/8" x 168" fl

1шт.

3

87535031

HYDRAULIC HOSE

3/8" x 184" fl

1шт.

4

23062

TEE

3/4"-16, 37º x 3/4"-16, O-Ring Br

2шт.

5

86513015

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

6

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

2шт.

7

87495430

HYDRAULIC HOSE

10 mm x 1320 mm fl

1шт.

8

87495429

HYDRAULIC HOSE

10 mm x 1120 mm fl

1шт.
