Запчасти Case IH 800 (35.900.46) - HYDRAULICS - 50 10" CENTER SECTION TRIP LOWER CCT (35) - HYDRAULIC SYSTEMS

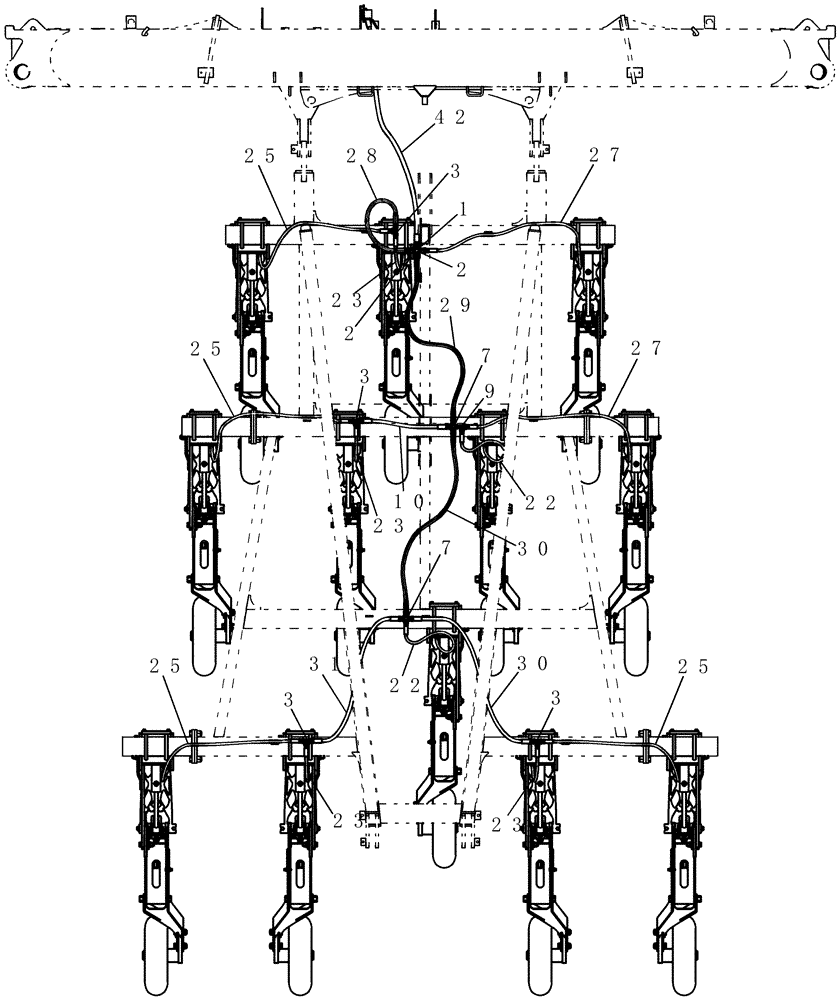

Схема запчастей Case IH 800 - (35.900.46) - HYDRAULICS - 50 10" CENTER SECTION TRIP LOWER CCT (35) - HYDRAULIC SYSTEMS
23
42
27
25
23
10
31
25
3
9
22
27
7
23
2
3
29
7
3
30
28
25
22
2
30
3
25
1
23

Артикул

Название

Примечание

Количество

1

86513043

4 WAY CONNECTION,3/4"-16, 37 Degree

1шт.

2

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

2шт.

3

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

4шт.

7

86513042

4 WAY CONNECTION,9/16"-18, 37 Degree

2шт.

9

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

10

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

1шт.

22

84241097

HYDRAULIC HOSE

6.3 mm x 1000 mm fl

2шт.

23

84233744

HYDRAULIC HOSE,6.35mm ID x 560mm L, SAE 100R17

6.3 mm x 560 mm fl

4шт.

25

84241095

HYDRAULIC HOSE

6.3 mm x 1230 mm fl

4шт.

27

84233746

HYDRAULIC HOSE

6.3 mm x 1380 mm fl

2шт.

28

1251872C2

HYDRAULIC HOSE

3/8" x 23" fl, 3/8" fjic x 3/8" fjic

1шт.

29

87723329

HYDRAULIC HOSE

10 mm x 1095 mm fl

1шт.

30

87721075

HYDRAULIC HOSE

10 mm x 1095 mm fl

2шт.

31

129672C2

HYDRAULIC HOSE

3/8" x 39" fl

1шт.

42

87493985

HYDRAULIC HOSE

12.5 mm x 1700 mm fl

1шт.

Выбрано товаров: 15
