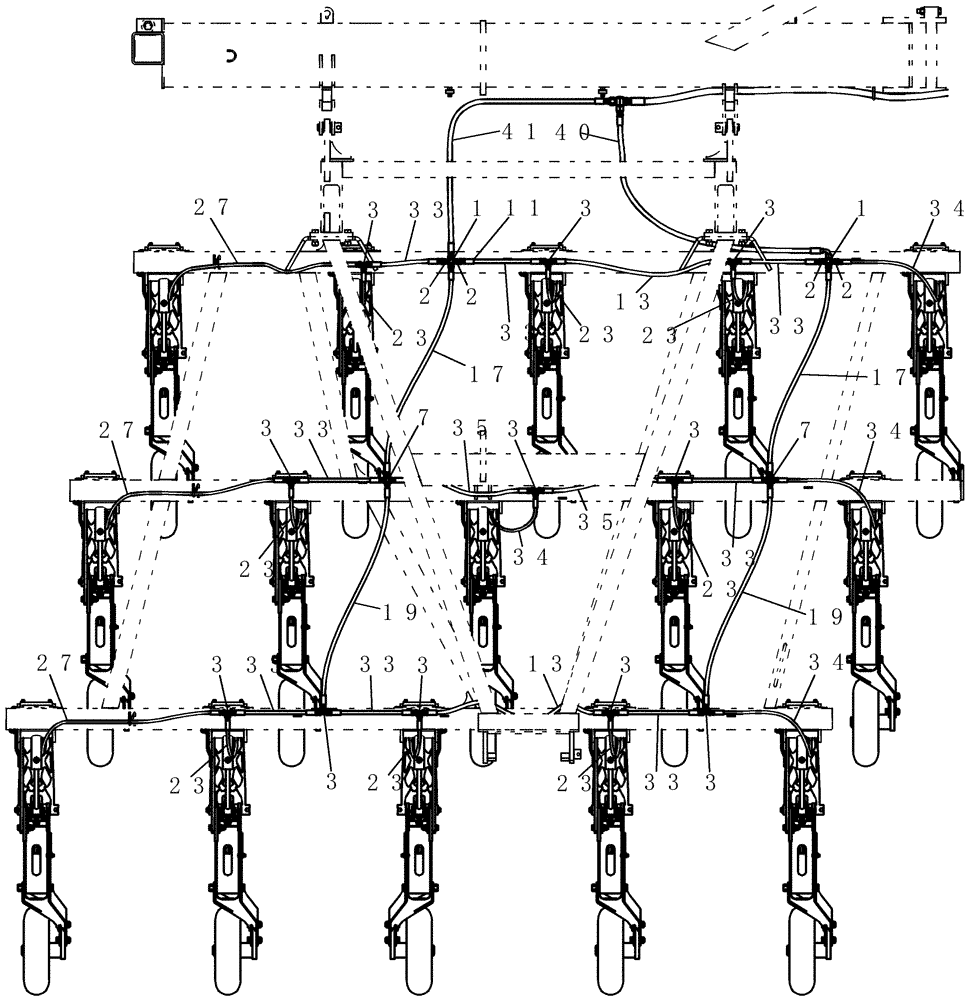

Запчасти Case IH 800 (35.900.28) - HYDRAULICS - 70 12" OUTER WING TRIP LOWER CCT (35) - HYDRAULIC SYSTEMS

1

86513043

4 WAY CONNECTION,3/4"-16, 37 Degree

2шт.

2

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

4шт.

3

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

11шт.

7

86513042

4 WAY CONNECTION,9/16"-18, 37 Degree

2шт.

11

84246820

HYDRAULIC HOSE

10 mm x 225 mm fl

1шт.

13

1284338C1

HYDRAULIC HOSE

3/8" x 940"

2шт.

17

84233753

HYDRAULIC HOSE

10 mm x 1150 mm fl

2шт.

19

1284301C1

HYDRAULIC HOSE

3/8" x 45" fl

2шт.

23

84233744

HYDRAULIC HOSE,6.35mm ID x 560mm L, SAE 100R17

6.3 mm x 560 mm fl

8шт.

27

84233746

HYDRAULIC HOSE

6.3 mm x 1380 mm fl

3шт.

33

147887C1

HYDRAULIC HOSE,9.53mm ID x 485mm L

3/8" x 19" fl

8шт.

34

84233748

HYDRAULIC HOSE

6.3 mm x 1075 mm fl

4шт.

35

87706C1

HYDRAULIC HOSE

3/8" x 29"

2шт.

40

84247991

HYDRAULIC HOSE

12.5 mm x 1780 mm fl

1шт.

41

195869C2

HYDRAULIC HOSE

1/2" x 75" fl

1шт.
