Запчасти Case IH 800 (35.900.25) - HYDRAULICS - 70 10" CENTER SECTION TRIP LIFT CCT (35) - HYDRAULIC SYSTEMS

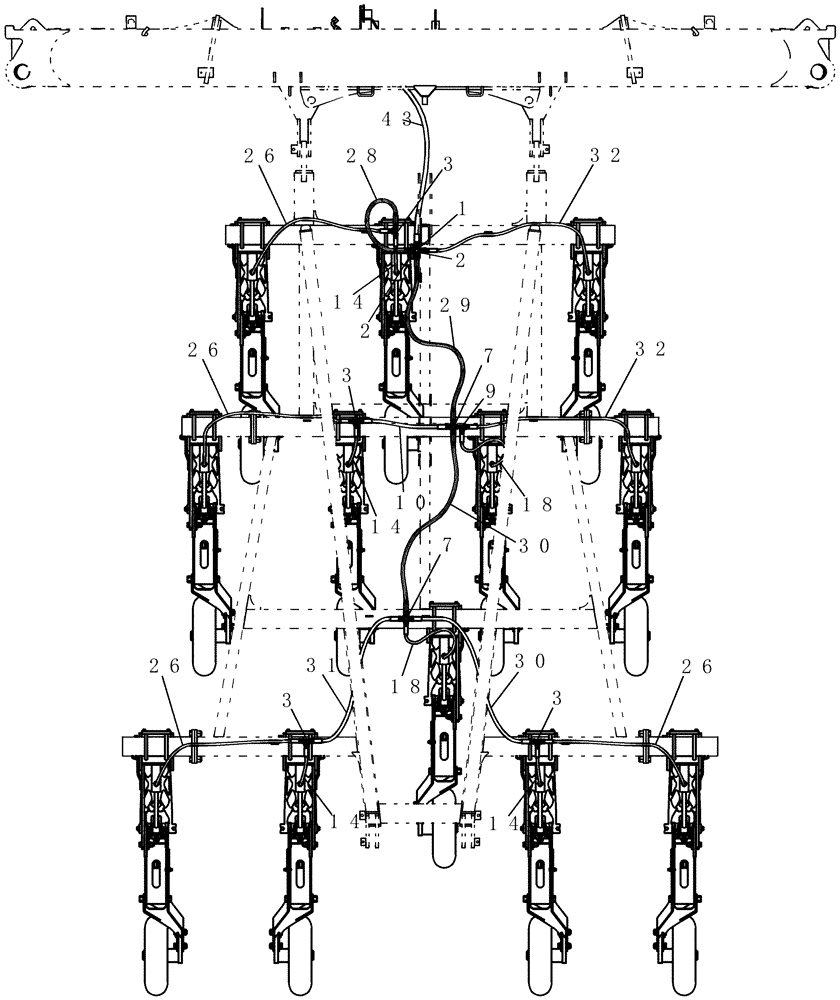

Схема запчастей Case IH 800 - (35.900.25) - HYDRAULICS - 70 10" CENTER SECTION TRIP LIFT CCT (35) - HYDRAULIC SYSTEMS
29
30
10
14
26
30
32
9
14
26
18
2
3
14
1
7
3
2
26
7
26
14
3
18
31
43
28
32
3

Артикул

Название

Примечание

Количество

1

86513043

4 WAY CONNECTION,3/4"-16, 37 Degree

1шт.

2

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

2шт.

3

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

4шт.

7

86513042

4 WAY CONNECTION,9/16"-18, 37 Degree

2шт.

9

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

10

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

1шт.

14

84238339

HYDRAULIC HOSE

6.3 mm x 500 mm fl

4шт.

18

84241098

HYDRAULIC HOSE

6.3 mm x 820 mm fl

2шт.

26

84241096

HYDRAULIC HOSE

6.3 mm x 1050 mm fl

4шт.

28

1251872C2

HYDRAULIC HOSE

3/8" x 23" fl, 3/8" fjic x 3/8" fjic

1шт.

29

87723329

HYDRAULIC HOSE

10 mm x 1095 mm fl

1шт.

30

87721075

HYDRAULIC HOSE

10 mm x 1095 mm fl

2шт.

31

129672C2

HYDRAULIC HOSE

3/8" x 39" fl

1шт.

32

84233747

HYDRAULIC HOSE

6.3 mm x 1200 mm fl

2шт.

43

84302091

HYDRAULIC HOSE

12.5 mm x 1550 mm fl

1шт.

Выбрано товаров: 15
