Запчасти Case IH 800 (35.900.20) - HYDRAULICS - 70 10" INNER WING TRIP LOWER CCT (35) - HYDRAULIC SYSTEMS

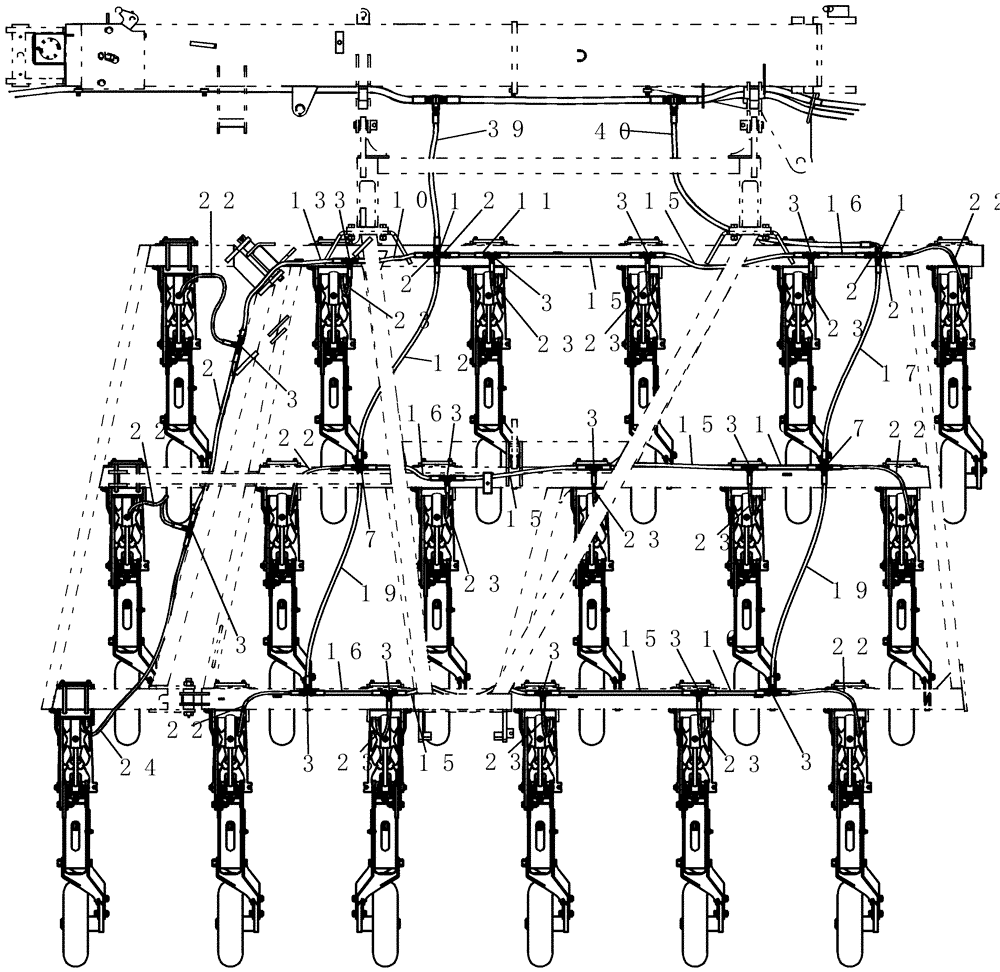

Схема запчастей Case IH 800 - (35.900.20) - HYDRAULICS - 70 10" INNER WING TRIP LOWER CCT (35) - HYDRAULIC SYSTEMS
17
23
23
15
21
1
1
2
22
22
3
23
3
3
23
15
15
16
16
12
2
3
15
13
39
16
3
3
23
22
16
7
3
3
19
23
19
22
3
2
24
23
23
40
22
15
7
2
3
3
3
16
11
3
10
22
15
22
23
23
3

Артикул

Название

Примечание

Количество

1

86513043

4 WAY CONNECTION,3/4"-16, 37 Degree

2шт.

2

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

4шт.

3

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

14шт.

7

86513042

4 WAY CONNECTION,9/16"-18, 37 Degree

2шт.

10

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

1шт.

11

84246820

HYDRAULIC HOSE

10 mm x 225 mm fl

1шт.

12

84233753

HYDRAULIC HOSE

10 mm x 1150 mm fl

2шт.

13

1284338C1

HYDRAULIC HOSE

3/8" x 940"

1шт.

15

393704R92

HYDRAULIC HOSE

3/8" x 31" fl

6шт.

16

1284323C1

HYDRAULIC HOSE

3/8" x 15" (380 mm)

5шт.

19

1284301C1

HYDRAULIC HOSE

3/8" x 45" fl

2шт.

21

1270453C1

HYDRAULIC HOSE

3/8" x 35" long

1шт.

22

84241097

HYDRAULIC HOSE

6.3 mm x 1000 mm fl

7шт.

23

84233744

HYDRAULIC HOSE,6.35mm ID x 560mm L, SAE 100R17

6.3 mm x 560 mm fl

10шт.

24

84237622

HYDRAULIC HOSE

6.3 mm x 1760 mm fl

1шт.

39

1304245C2

HYDRAULIC HOSE

1/2" x 37" fl

1шт.

40

84247991

HYDRAULIC HOSE

12.5 mm x 1780 mm fl

1шт.

Выбрано товаров: 17
