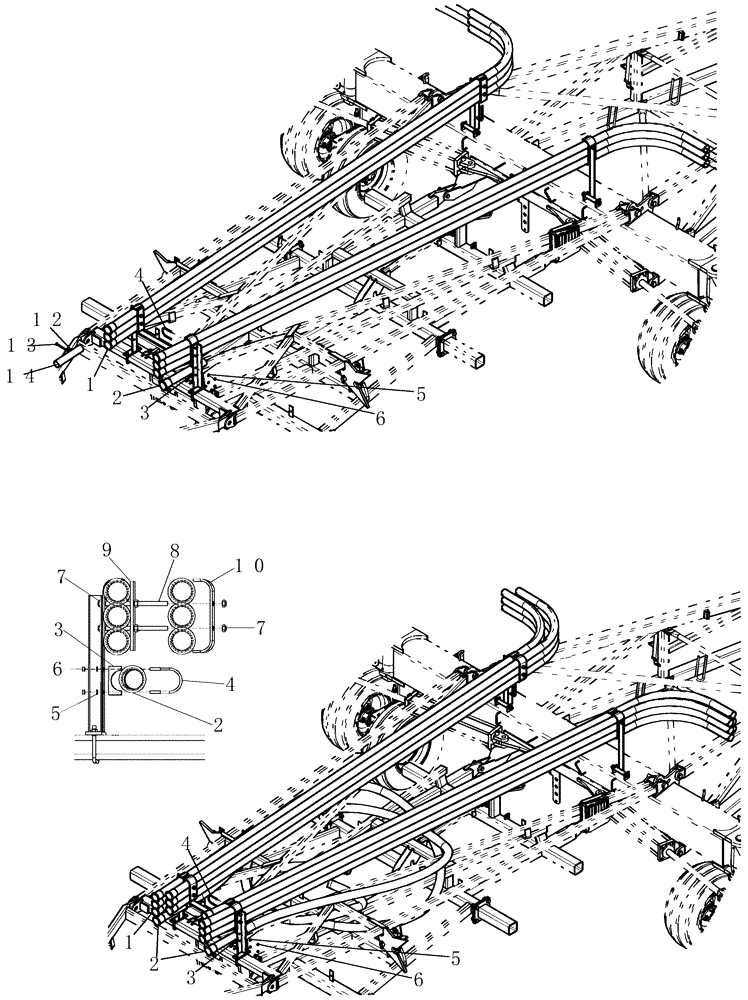

Запчасти Case IH 800 (75.200.33) - AIR PACKAGE - TOW BEHIND J-TUBE MOUNTING (75) - SOIL PREPARATION

1

87504463

TUBE,63.5 mm OD x 5324 mm L

primary tow behind

6шт.

2

87504459

TUBE,86mm OD X 482 mm length

primary straight

1шт.

3

87506432

CLAMP

muffler, formed back

1шт.

4

1824

CLAMP

muffler, 2 1/2"

1шт.

5

80681

LOCK WASHER,5/16"

2шт.

6

9635082

NUT,5/16" - 18, Gr 5

2шт.

7

86992215

LOCK NUT,1/2"-13, GC

16шт.

8

87575303

STUD

airpac offset

8шт.

9

87504420

CLIP

hose holder

4шт.

10

87504726

CLAMP

air package

4шт.

12

8190

LATCH

clamp over center

7шт.

13

7327

RIVET,Pop, 1/8" x .390", Stainless

14шт.

14

87504371

PIPE FITTING

air package with latch

7шт.
