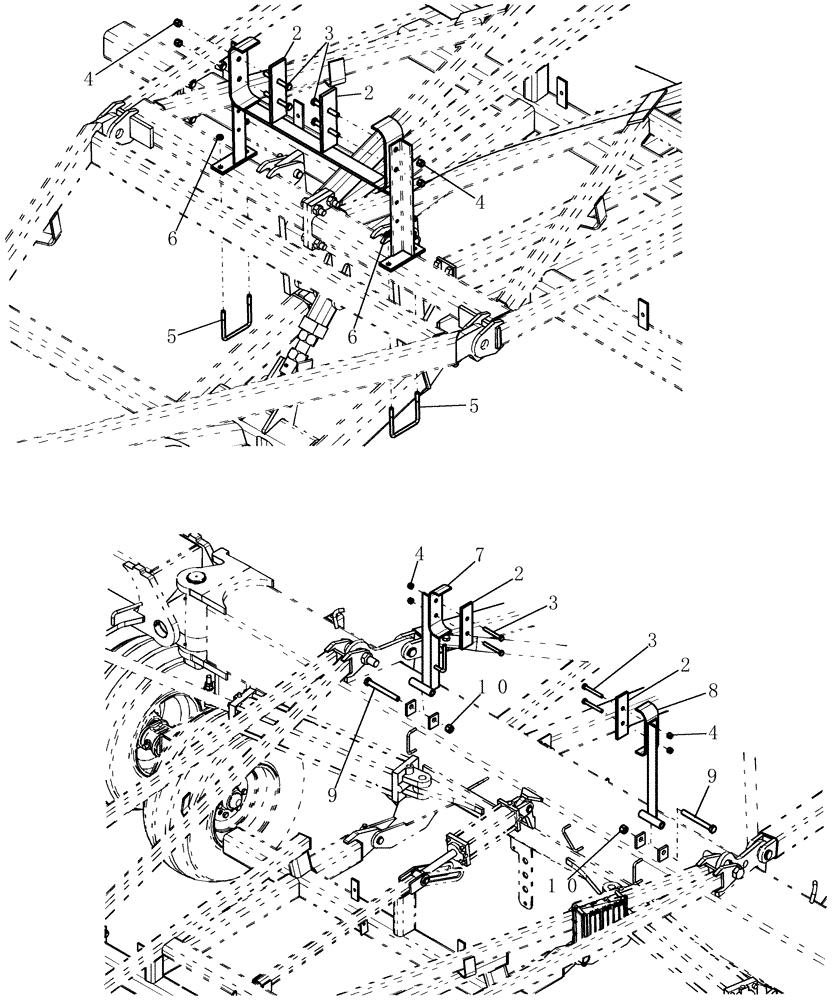

Запчасти Case IH 800 (75.200.32) - AIR PACKAGE - TOW BEHIND HOSE HOLDERS (75) - SOIL PREPARATION

1

87504423

MOUNTING PLATE

hose organizer

1шт.

2

87504420

CLIP

hose holder

4шт.

3

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

8шт.

4

86992215

LOCK NUT,1/2"-13, GC

8шт.

5

8598

U-BOLT

us 7/16"-14 4 1/8" w 4 1/4" d G5

2шт.

6

280980

NUT,7/16"-14, GC

4шт.

7

84136259

MOUNT

Hose Organizer

1шт.

8

84132262

MOUNT

Hose Organizer

1шт.

9

280316

BOLT,Hex, 3/4" - 10 x 7", Gr 5

2шт.

10

86754

NUT,3/4"-10, GB

2шт.
