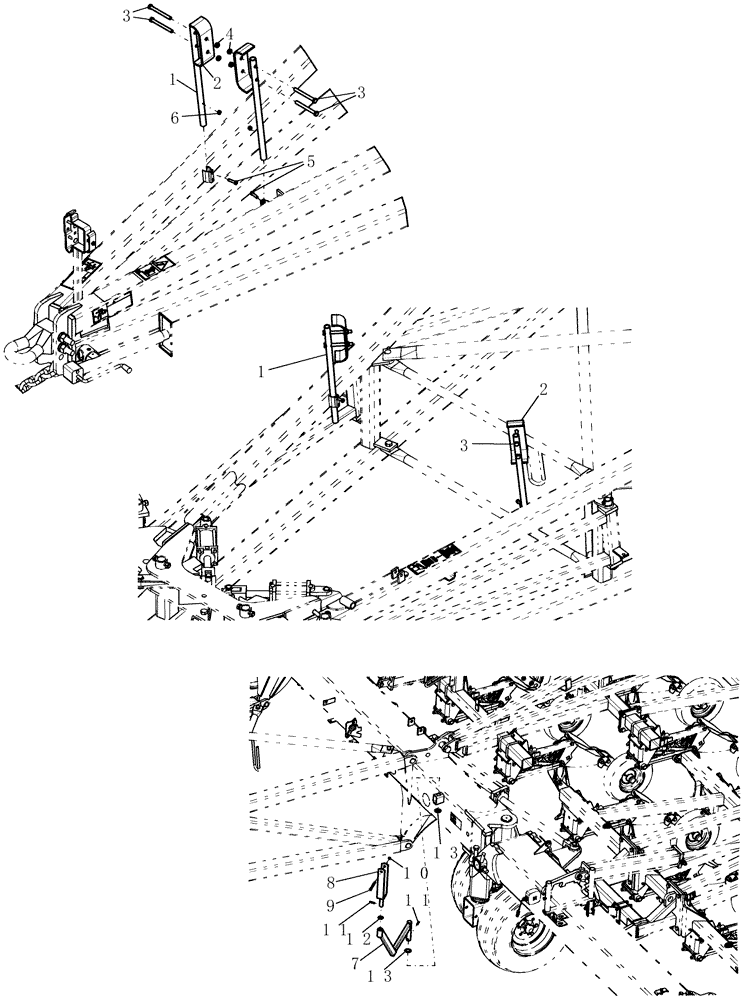

Запчасти Case IH 800 (75.200.30) - AIR PACKAGE - TOW BETWEEN HOSE HOLDERS (75) - SOIL PREPARATION

1

87575304

SHAFT

hose mount

4шт.

2

87504726

CLAMP

air package

4шт.

3

87997

BOLT,Hex, 1/2" - 13 x 5", Gr 5

8шт.

Single shoot

1шт.

3

87575303

STUD

airpac offset

8шт.

Double shoot

1шт.

4

86992215

LOCK NUT,1/2"-13, GC

8шт.

5

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

6

9628503

NUT,3/8"-16, G5

4шт.

7

84237907

ARM

Hose Holder

2шт.

8

87504425

FORK

hose organizer

2шт.

9

80012047

BOLT,Hex, 3/8" - 16 x 4", Grade 5

2шт.

10

88902

NUT,3/8"-16

2шт.

11

438-12024

LOCK PIN,5/16" x 1 1/2", Slotted

4шт.

12

87325444

WASHER,1.02" ID x 1.5" OD x 0.07" Thk

1 1/64" id 1 1/2" 14ga

2шт.

13

87325445

WASHER,1.25" ID x 1.88" OD x 0.07" Thk

1 1/4" id 1 7/8" 14ga

4шт.
