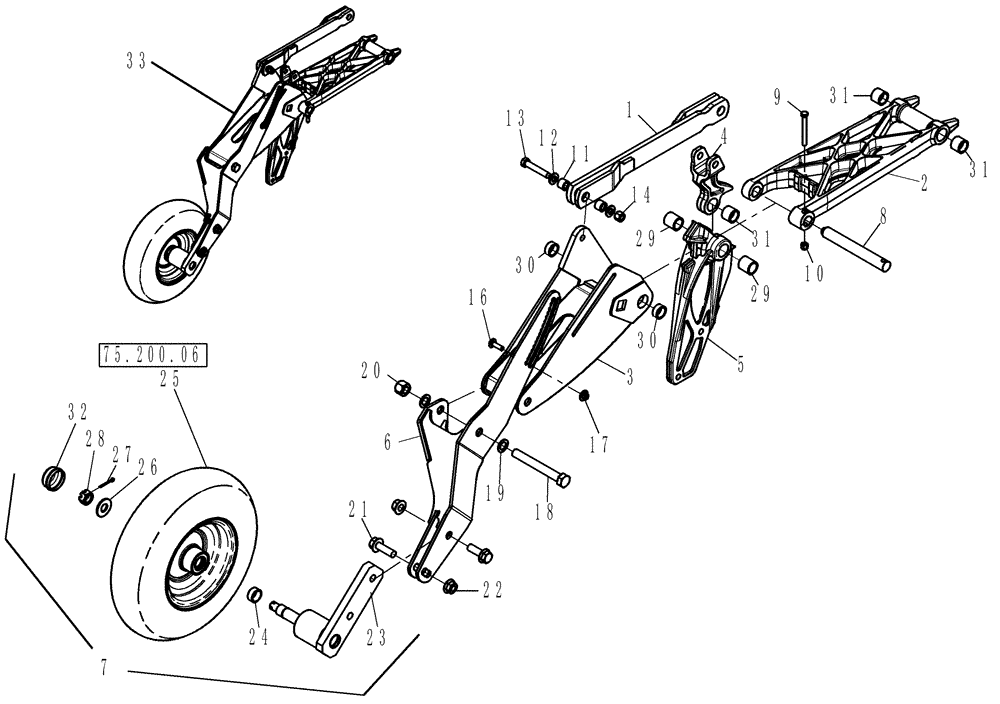

Запчасти Case IH 800 (75.200.01[01]) - OPENER TRU LINK LH (75) - SOIL PREPARATION

1

84143080

UPPER LINK

1шт.

2

87734408

CASTING

lower link

1шт.

3

87737805

FRAME

Rear, LH

1шт.

4

87737824

LINK

Cylinder Drive

1шт.

5

87734406

ADAPTER

shank

1шт.

6

87737807

ARM

packer RH

1шт.

7

87717294

WHEEL ASSY

Packer, 4.8-8

1шт.

8

84250989

PIN,25.4mm OD x 205mm L

25.4 mm x 190 mm ul, Special

1шт.

9

426-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 8

1шт.

10

88902

NUT,3/8"-16

1шт.

11

1254302C1

BUSHING,13.5mm ID x 22.2mm OD x 16.7mm L

link pivot

2шт.

12

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

13

47414637

BOLT

HEX FLANGE 13.25X65MM

1шт.

14

87025806

LOCK NUT

FLANGE 1/2-13 GR G ZND

1шт.

16

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

1шт.

17

84231930

FLANGE NUT

3/8" Large

1шт.

18

84128148

BOLT

Hex, 3/4"-10 x 6", G5, 3/4" Thrd

1шт.

19

4285

WASHER

3/4" id 18ga

2шт.

20

231-42412

NUT,3/4"-10, GB

1шт.

21

86521621

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

22

86521611

FLANGE NUT,Flg, 5/8"-11

2шт.

23

87733486

SPINDLE

Packer Arm

1шт.

24

87737817

SLEEVE

31.8 mm od x 26.4 mm id x 14.6 mm Long

1шт.

25

87737821

WHEEL ASSY,231.8mm OD x 114.3mm W

4.1-8 Roller Bearing

1шт.

Refer to 75.200.06

1шт.

26

86012106

WASHER

spindle wa10 .75 id

1шт.

27

86523851

COTTER PIN,5/32" x 1 1/4"

1шт.

28

88886

SLOTTED NUT,3/4"-16

1шт.

29

84396633

BUSHING

composite 31.8 mm od x 25.4 mm id x 33.0 mm long

2шт.

30

87584013

BEARING LINER,25.634 mm ID x 31.87 mm OD x 12.7 mm

25.5 mm id x 31.8 mm od x 12.7 mm long

2шт.

31

87420246

BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L

Garmax MGL composite 1 1/4" x 1" x 1"

3шт.

32

200734

HUB CAP

Deksel

1шт.

33

84297654

OPENER

Package With Mount, Hardware, Knife, And Cyl

1шт.

33

84490516

HOE

Opener Package With Out Mount, Hardware, Knife, And Cyl

1шт.
