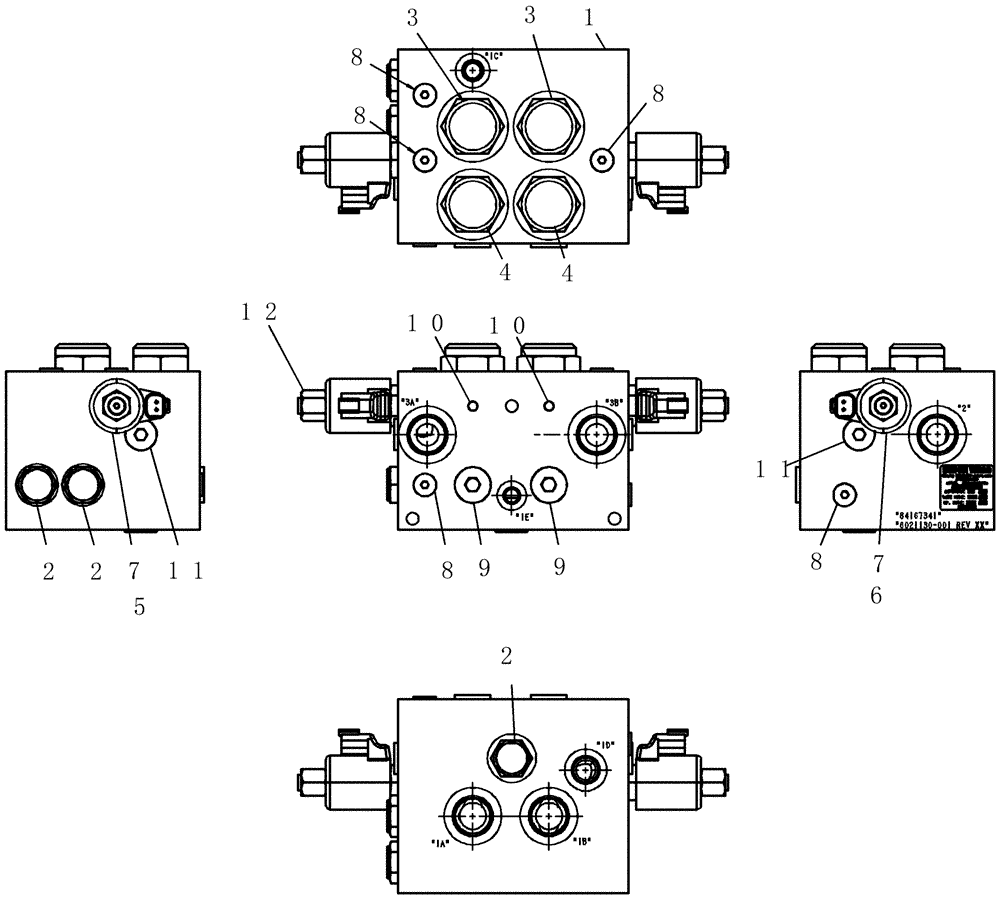

Запчасти Case IH 800 (35.900.04) - VALVE, PRESSURE CONTROL 84167341 - DETAILS (35) - HYDRAULIC SYSTEMS

1

84167341

VALVE, PRESSURE CONT

Hydraulic Electro Assembly

1шт.

2

86511474

CHECK VALVE

Coast

3шт.

3

84275103

VALVE

Differential Pressure Sensing

2шт.

3a

1978123C1

SEAL KIT

4шт.

4

84275104

VALVE

Differential Pressure Sensing

2шт.

4a

1978123C1

SEAL KIT

4шт.

5

84296856

VALVE

Inverse Proportional Relief

1шт.

5a

86508168

SEAL KIT

Relief Valve

2шт.

6

84296857

VALVE

Inverse Proportional Relief

1шт.

6a

86508168

SEAL KIT

Relief Valve

2шт.

7

87352779

SOLENOID

Coil

2шт.

8

87035062

PLUG,Hex, 1/2"-20 ORB

5шт.

8a

86010510

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

5шт.

9

9625178

PLUG,9/16" - 18 ORB

2шт.

9a

129270

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

2шт.

10

86598044

PLUG,Hex, M14 x 1.5 ORB

2шт.

10a

86513328

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

2шт.

11

86598044

PLUG,Hex, M14 x 1.5 ORB

2шт.

11a

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

12

87031967

NUT

Moer

2шт.
