(55.404.03) - OUTER SECTION TRANSPORT LIGHTING AND SMV SIGN (50)

Запчасти Case IH 800 (55.404.03) - OUTER SECTION TRANSPORT LIGHTING AND SMV SIGN (50) (55) - ELECTRICAL SYSTEMS

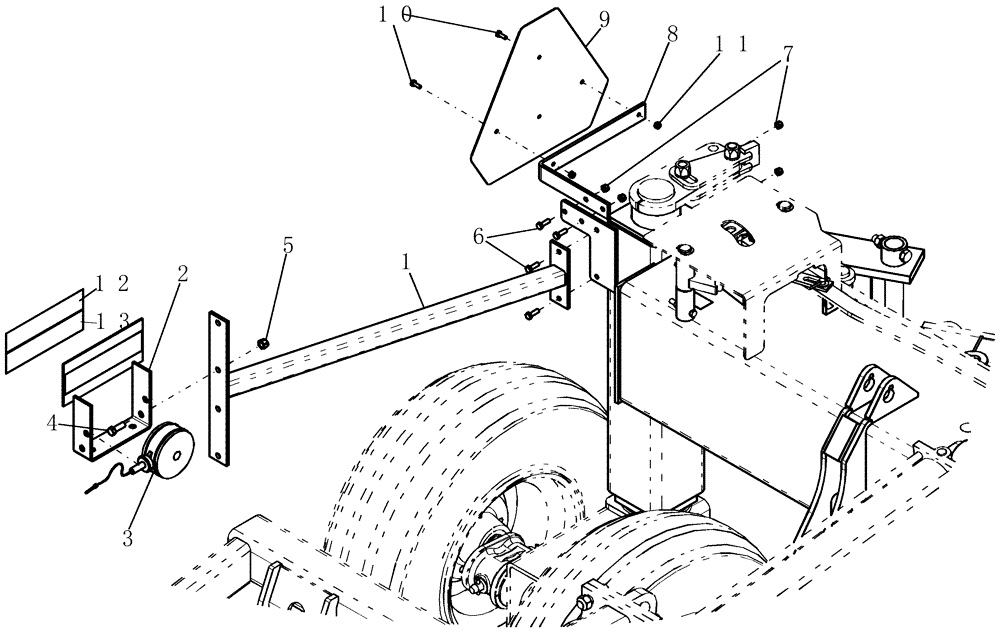

Схема запчастей Case IH 800 - (55.404.03) - OUTER SECTION TRANSPORT LIGHTING AND SMV SIGN (50) (55) - ELECTRICAL SYSTEMS
13
11
12
6
10
1
4
5
9
3
7
2
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84232577

ARM

Light, Outer 50'

1шт.

2

NW-589

BRACKET

amber light / decal mount

1шт.

3

51200040

LIGHT

assy. stop tail/signal red

1шт.

4

9627887

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5, Full Thd

1шт.

5

231-4147

LOCK NUT,7/16"-14, GB

1шт.

6

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.

7

280736

NUT,5/16"-18, GC

4шт.

8

84232572

BRACKET

SMV Sign, 50'

1шт.

9

412742A1

WARNING SIGN

smv steel back 4 holes

1шт.

10

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

11

231-4144

NUT,1/4"-20, GB

2шт.
