(55.404.02) - OUTER SECTION TRANSPORT LIGHTING (60, 70)

Запчасти Case IH 800 (55.404.02) - OUTER SECTION TRANSPORT LIGHTING (60, 70) (55) - ELECTRICAL SYSTEMS

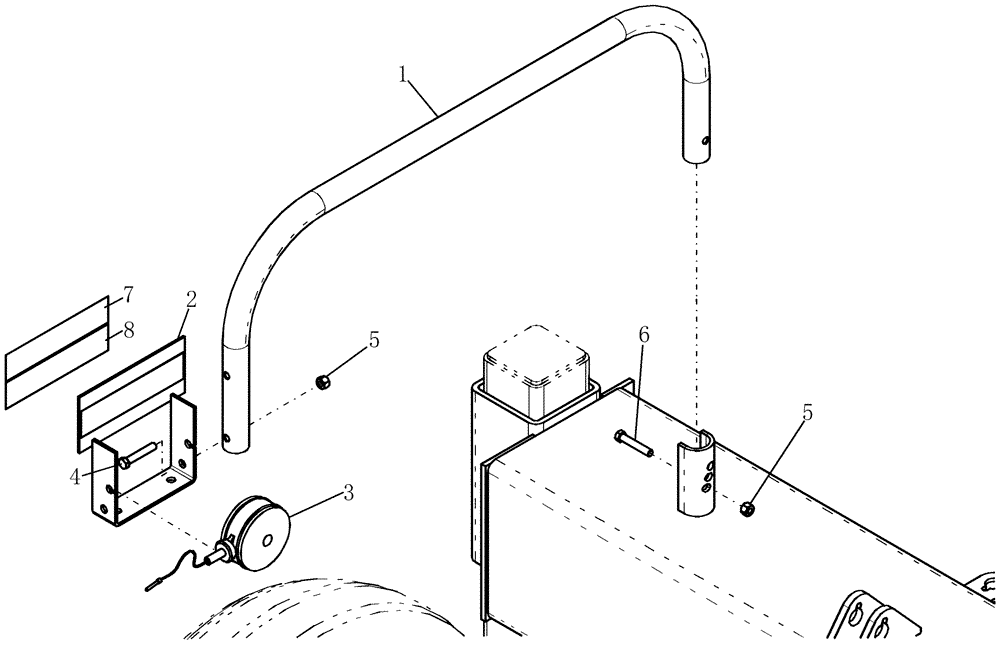

Схема запчастей Case IH 800 - (55.404.02) - OUTER SECTION TRANSPORT LIGHTING (60, 70) (55) - ELECTRICAL SYSTEMS
8
5
1
3
6
5
7
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84131720

ARM

Transport Lighting Outer

1шт.

2

22903

DECAL

retroreflective amber 2" x 9"

1шт.

3

51200040

LIGHT

assy. stop tail/signal red

2шт.

4

88604

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

4шт.

5

231-4147

LOCK NUT,7/16"-14, GB

4шт.

6

88604

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

8шт.

7

22902

DECAL

retroreflective red 2" x 9"

8шт.

8

51200094

DECAL

fluorescent red orange

2шт.
