(55.404.01) - INNER SECTION TRANSPORT LIGHTING (50, 60, AND 70)

Запчасти Case IH 800 (55.404.01) - INNER SECTION TRANSPORT LIGHTING (50, 60, AND 70) (55) - ELECTRICAL SYSTEMS

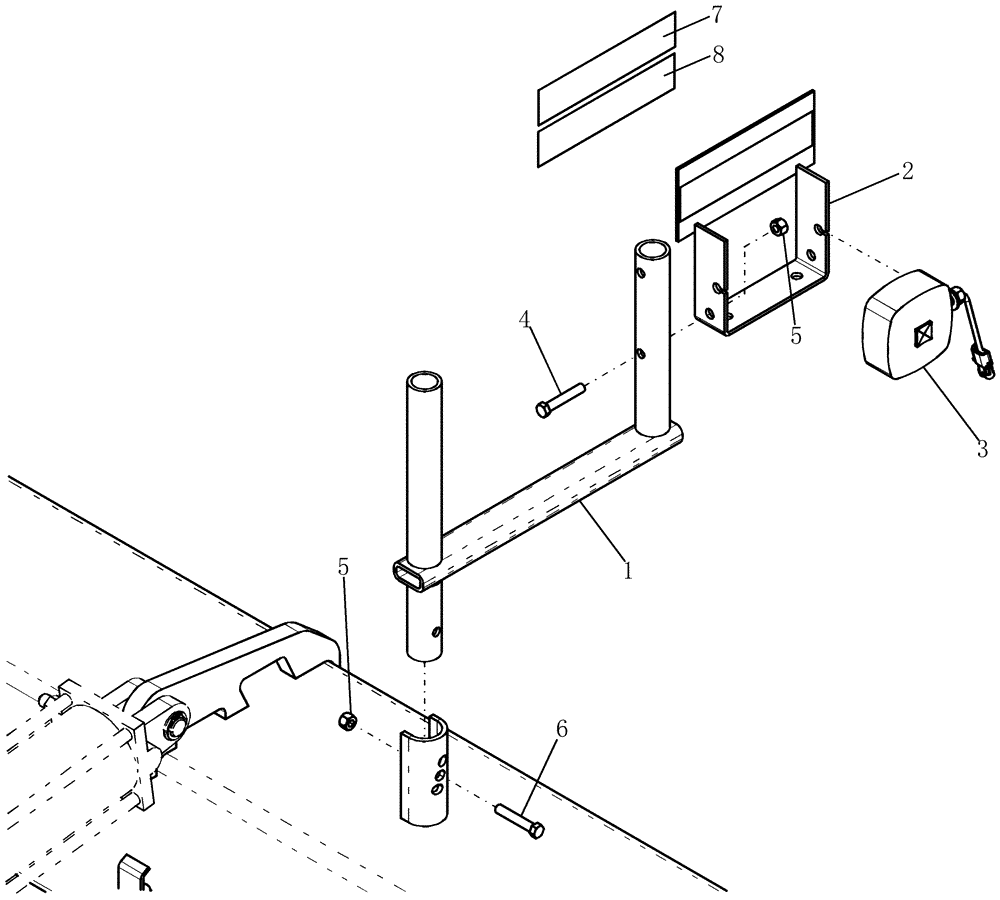

Схема запчастей Case IH 800 - (55.404.01) - INNER SECTION TRANSPORT LIGHTING (50, 60, AND 70) (55) - ELECTRICAL SYSTEMS
2
3
5
4
7
6
8
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84132260

ARM

Light Mount, Hose Rack

1шт.

2

NW-589

BRACKET

amber light / decal mount

2шт.

3

87564157

WARNING LIGHT

assembly amber

1шт.

4

88604

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

2шт.

5

231-4147

LOCK NUT,7/16"-14, GB

4шт.

6

88604

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

2шт.

7

22902

DECAL

retroreflective red 2" x 9"

2шт.

8

51200094

DECAL

fluorescent red orange

2шт.
