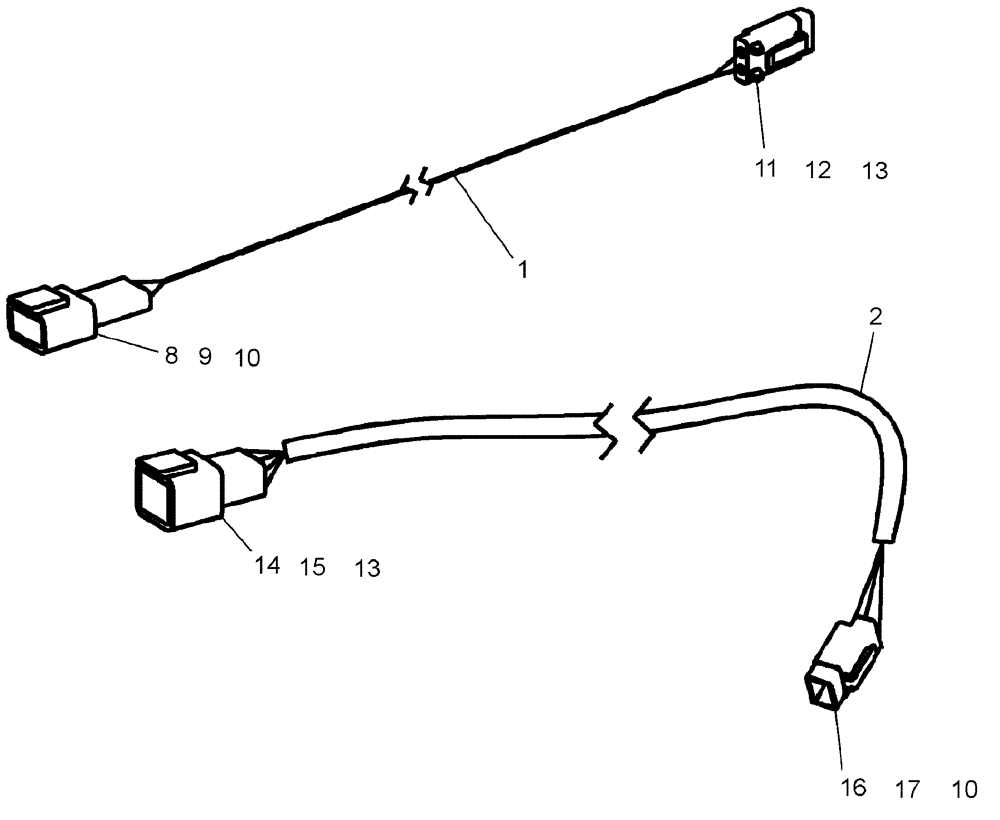

Запчасти Case IH 800 (55.100.04) - HARNESS, EXTENSIONS (55) - ELECTRICAL SYSTEMS

1

87419314

HARNESS

extension 4 m x 2c dtm

1шт.

2

87506449

HARNESS

seedflow interconnect 7.5 m

1шт.

8

222136A1

ELEC CONNECTOR,Male, 2 Pin

plastic 2c receptacle

1шт.

9

222848A1

ELEC CONNECTOR

lock 2c receptacle

1шт.

10

223950A1

ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm

18-20awg copper nickel plated

6шт.

11

222135A1

CONNECTOR, ELEC

CONNECTOR plastic 2c plug

1шт.

12

222846A1

STOP LOCK

2c plug connector

1шт.

13

223952A1

ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm

socket 18-20awg

6шт.

14

277904A1

ELEC CONNECTOR,Female, 4 Pin

plastic 4c plug

1шт.

15

279794A1

STOP LOCK,Locking, Orange

4c plug connector

1шт.

16

277905A1

ELEC CONNECTOR,Male, 4 Pin

plastic 4c receptacle

1шт.

17

279795A1

STOP LOCK

4c receptacle connector

1шт.
