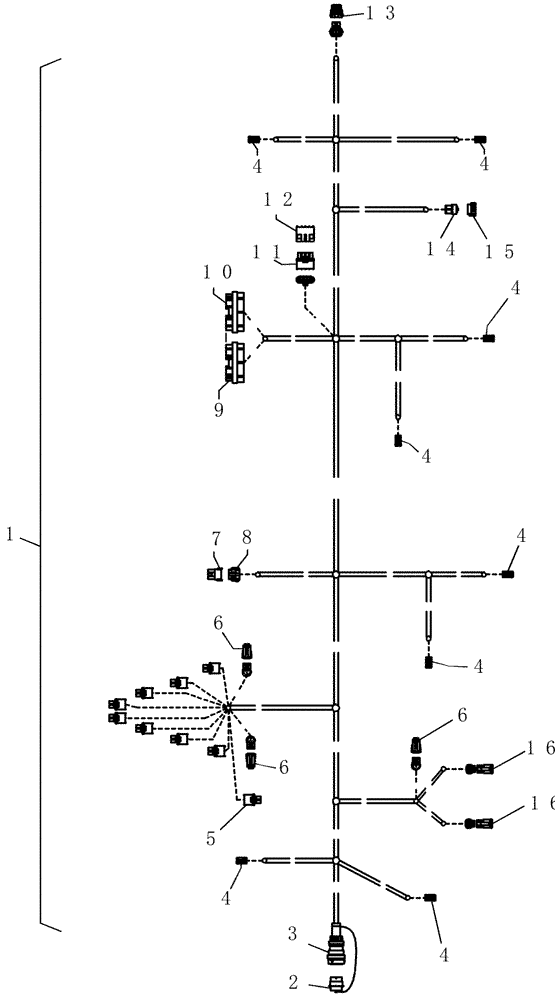

Запчасти Case IH 800 (55.100.02) - HARNESS 84178866, PRECISION HOE DRILL ELECTRICAL (55) - ELECTRICAL SYSTEMS

1

84178866

HARNESS

Precision Hoe Drill Electrical

1шт.

2

788614

PROTECTING COVER,2" OD x 1.7" Long

dust 23 con rcp Deutsch

1шт.

3

279043A1

ELEC CONNECTOR,Female, 9 Pin

metal 9c plug

1шт.

4

15117

ELEC CONNECTOR,2 Pin

plastic 2c plug

8шт.

5

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

9шт.

6

198456A1

ELEC CONNECTOR,Female

3-Way Receptacle ES-A7380

3шт.

7

223672A1

MULTIPOLE CONNECTOR,Male, 12 Pin

elec plastic 12c receptacle

1шт.

8

87700156

CONTACT HOUSING,Female, 12 Pole

Deutsch 12 way dtm plug, grey

1шт.

9

87268797

MULTIPOLE CONNECTOR,Female, 30 Pole

30c b plug

1шт.

10

87268798

MULTIPOLE CONNECTOR,Female, 30 Pole

30c plug b key

1шт.

11

245486C1

ELEC CONNECTOR,4 Pin

plastic 4c plug

1шт.

12

245487C1

ELEC CONNECTOR,Male, 4 Pin

4 Way Recepacle

1шт.

13

256348A1

ELEC CONNECTOR,Female, 6 Pin

6 Pin, Packard

1шт.

14

425050A1

ELEC CONNECTOR,Female, 6 Pin

plastic 6c plug

1шт.

15

14045

DUST CAP

6 cond rcp Deutsch

1шт.

16

225316C1

ELEC CONNECTOR,Female, 2 Pin

2 Cavity

2шт.
