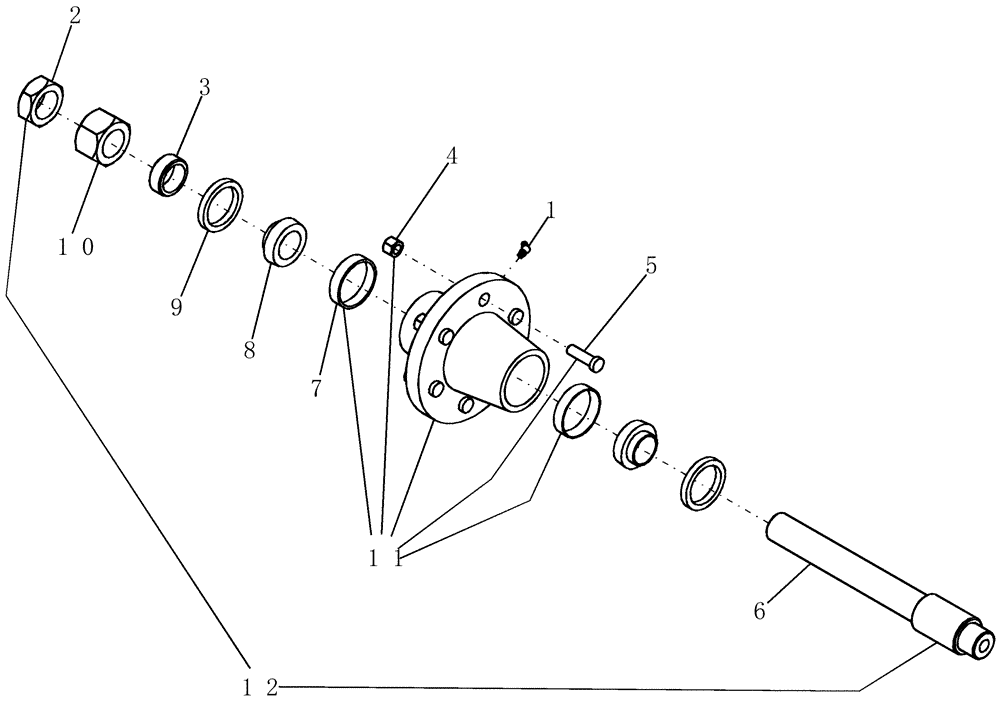

Запчасти Case IH 800 (44.100.02) - ASSEMBLY, HUB AND SPINDLE H617 (44) - WHEELS

1

87414

LUBE NIPPLE,1/4" - 28

1шт.

2

87010729

JAM NUT,Jam, 1 1/2"-6, G5

1шт.

3

GD-162

SPACER

tube wheel spindle

1шт.

4

F23214

WHEEL NUT

hub wheel - h517 & h617

6шт.

5

1662

BOLT

stud 1/2"-20 G5 wb16

6шт.

6

GD-161

SPINDLE

caster wheel

1шт.

7

72062

BEARING CUP,69.04mm OD x 15.08mm W

#13621

2шт.

8

72012

BEARING CONE

#LM13686

2шт.

9

36060

OIL SEAL,53.19mm ID x 69.19mm OD x 9.53mm Thk

SE24

2шт.

10

425-1024

NUT,1 1/2"-6, G5

1шт.

11

87505491

HUB

H617-1 assembly with cups and studs and nuts

1шт.

12

GD-161A

HUB

and spindle assembly H617-14.44" long, thru hub

1шт.
