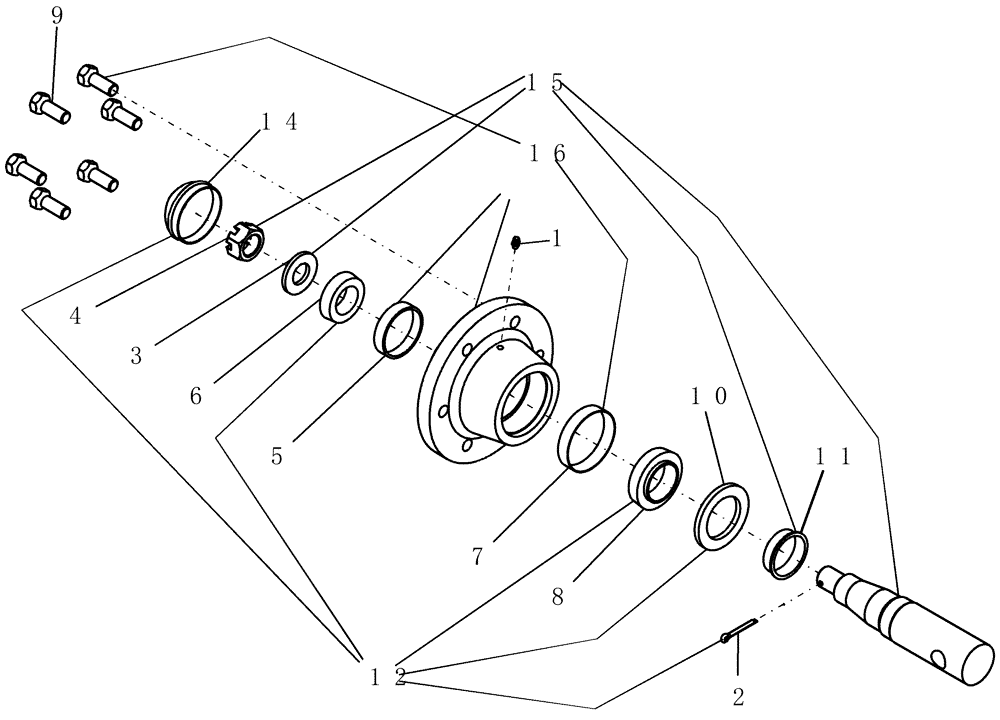

Запчасти Case IH 800 (44.100.01) - ASSEMBLY, HUB AND SPINDLE H615 (44) - WHEELS

1

87414

LUBE NIPPLE,1/4" - 28

1шт.

2

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

3

86900677

WASHER,1.03" ID x 2" OD x 0.18" Thk

1шт.

4

86020752

SLOTTED NUT

1"-14, G5

1шт.

5

86516467

BEARING CUP,65.08mm OD x 13.97mm W

#LM48510

1шт.

6

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

#LM48548

1шт.

7

86512027

BEARING SET,1.781" ID x 3.063" OD x .781" W

#LM603049

1шт.

8

86512027

BEARING SET,1.781" ID x 3.063" OD x .781" W

#LM603049

1шт.

9

86628557

WHEEL BOLT,Hex Csk, 9/16" - 18 x 1 1/8", HTS

6шт.

10

3685

OIL SEAL

triple lip - h615 hub

1шт.

11

51200202

SLEEVE

wear, spindle S614/S811

1шт.

12

6615

WHEEL BEARING KIT

completion - H615

1шт.

14

51200086

HUB CAP

dc15 h614

1шт.

15

87503786

SPINDLE

2" x 9 11/16" - with wear sleeve

1шт.

16

87505492

HUB

H615-1 assembly with cups and bolts

1шт.
