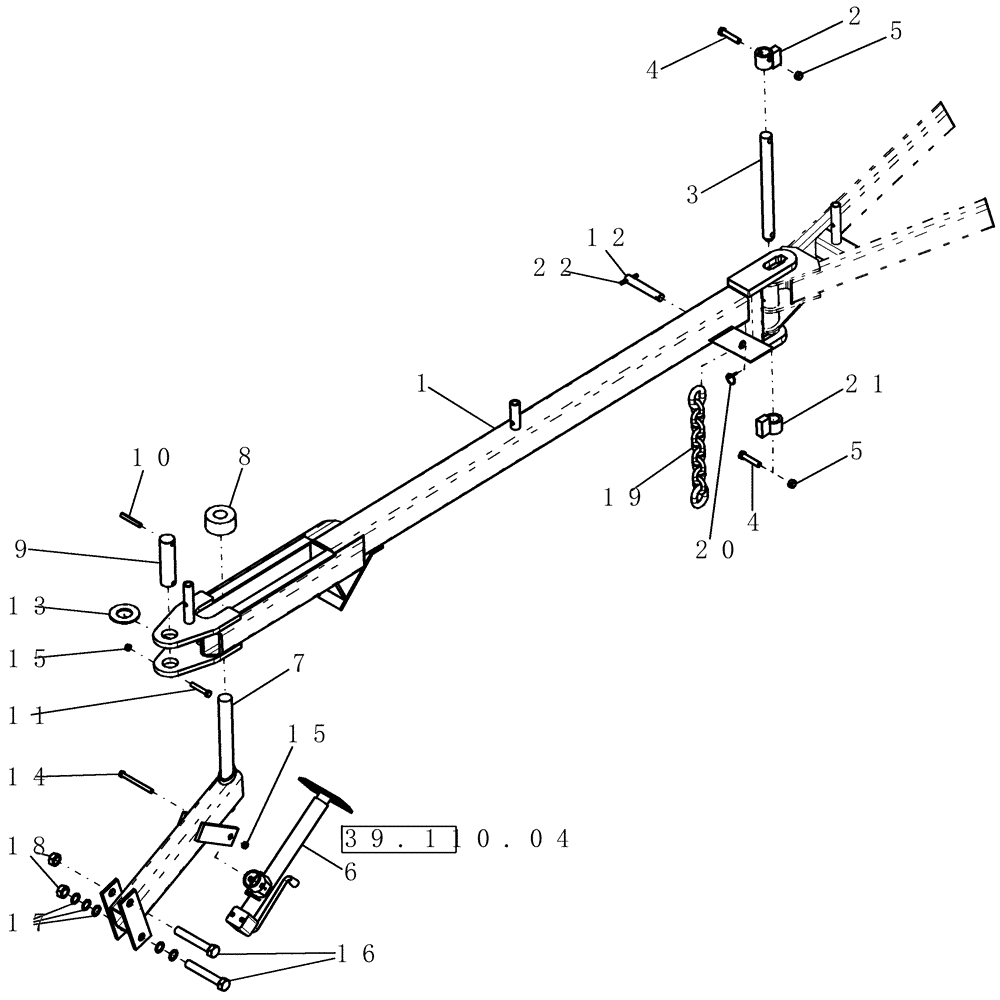

Запчасти Case IH 800 (39.110.14) - HITCH, TOW BEHIND AIR CART (39) - FRAMES AND BALLASTING

1

87504093

HITCH

tow behind air cart

1шт.

2

87505049

LOCK PIN

Top

1шт.

3

87420139

PIN,38.1mm OD x 439mm L

38.1 x 378 ul

1шт.

4

87338

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

5

85700693

NUT,5/8" - 11, Gr C

2шт.

6

7972

JACK

3000 lb x 15" long

1шт.

7

87504092

ARM

air cart steering

1шт.

8

87502246

BUSHING

air cart steering

1шт.

9

87505300

PIN

50.8 x 152 ul 2 holes

1шт.

10

432606A1

ROLL PIN

1/2" x 3 1/2"

1шт.

11

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

12

87420138

PIN

25.4 x 136 ul, 2 holes

1шт.

13

DR-494

BUSHING

support beam

1шт.

14

88576

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

1шт.

15

86992215

LOCK NUT,1/2"-13, GC

1шт.

16

18681

BOLT,Hex, 1" - 8 x 6 1/2", Gr 5

2шт.

17

87325444

WASHER,1.02" ID x 1.5" OD x 0.07" Thk

1 1/64" id 1 1/2" 14ga

5шт.

18

280286

NUT,1"-8, GB

2шт.

19

87619912

CHAIN

safety, 40,400 lb

1шт.

20

302676A1

LINCH PIN

4.76 mm x 31.75 mm long

1шт.

21

87505047

LOCK PIN

bottom

1шт.

22

86544809

LOCK PIN,9.53mm OD x 76.2mm L, Slotted

1шт.
