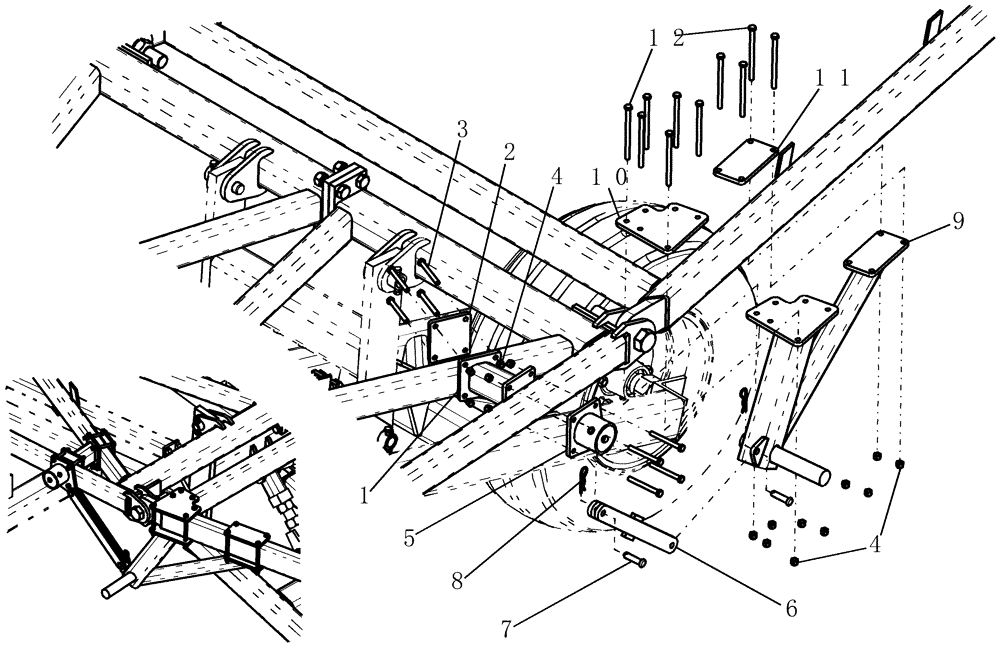

Запчасти Case IH 800 (39.110.12) - HITCH, REAR AIR CART AUX SUPPORT (39) - FRAMES AND BALLASTING

1

87696919

BRACKET

hitch jack mount support

1шт.

2

87696929

PLATE

hitch jack

1шт.

3

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

8шт.

4

9637692

NUT,3/8"-16, Gr B

18шт.

5

87696921

MOUNTING PARTS

hitch jack

1шт.

6

87696925

SUPPORT

hitch strut

1шт.

7

439-5832

HEADED PIN,12.7mm OD x 50.8mm L

2шт.

8

87328562

HAIR PIN COTTER

1/8" x 2 9/16"

2шт.

9

87696927

FRAME

hitch jacking point

1шт.

10

87696930

PLATE

hitch support

1шт.

11

87699206

PLATE

hitch support

1шт.

12

20304

BOLT,Hex, 3/8" - 16 x 5 1/2", Gr 5

10шт.
