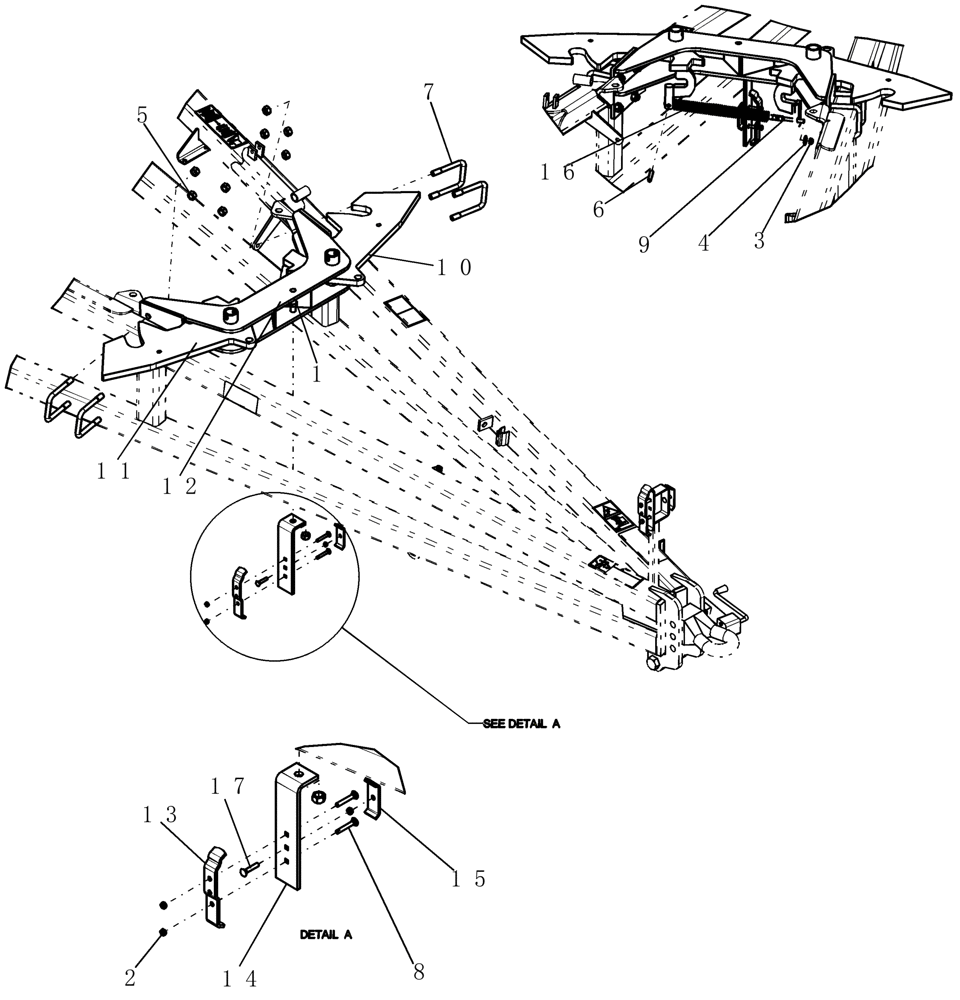

Запчасти Case IH 800 (39.110.02) - HITCH, FRONT LATCH ASSEMBLY (39) - FRAMES AND BALLASTING

1

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

1шт.

2

88902

NUT,3/8"-16

3шт.

3

86992215

LOCK NUT,1/2"-13, GC

1шт.

4

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

1шт.

5

280375

NUT,3/4"-10, GC

8шт.

6

4770

ROLL PIN

1/2" x 3"

1шт.

7

7818

U-BOLT

us 3/4"-10 x 4 1/32" wide x 5 5/8" deep

4шт.

8

9504

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2.50", Gr 5

2шт.

9

22668

SPECIAL BOLT

spade 1/2"-13 x 4 1/4"

1шт.

10

87503814

LINK

draft latch left

1шт.

11

87503817

LINK

draft latch right

1шт.

12

87503827

HOUSING

hitch latch

1шт.

13

GL-813

CLAMP

hydraulic hose

1шт.

14

87503838

BRACKET

hydraulic hose carrier

1шт.

15

CC-106

HOSE CLAMP

for 4 hoses

1шт.

16

87505303

TENSION SPRING

5/16" wire 1 5/64" od x 18" long

1шт.

17

280661

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

1шт.
