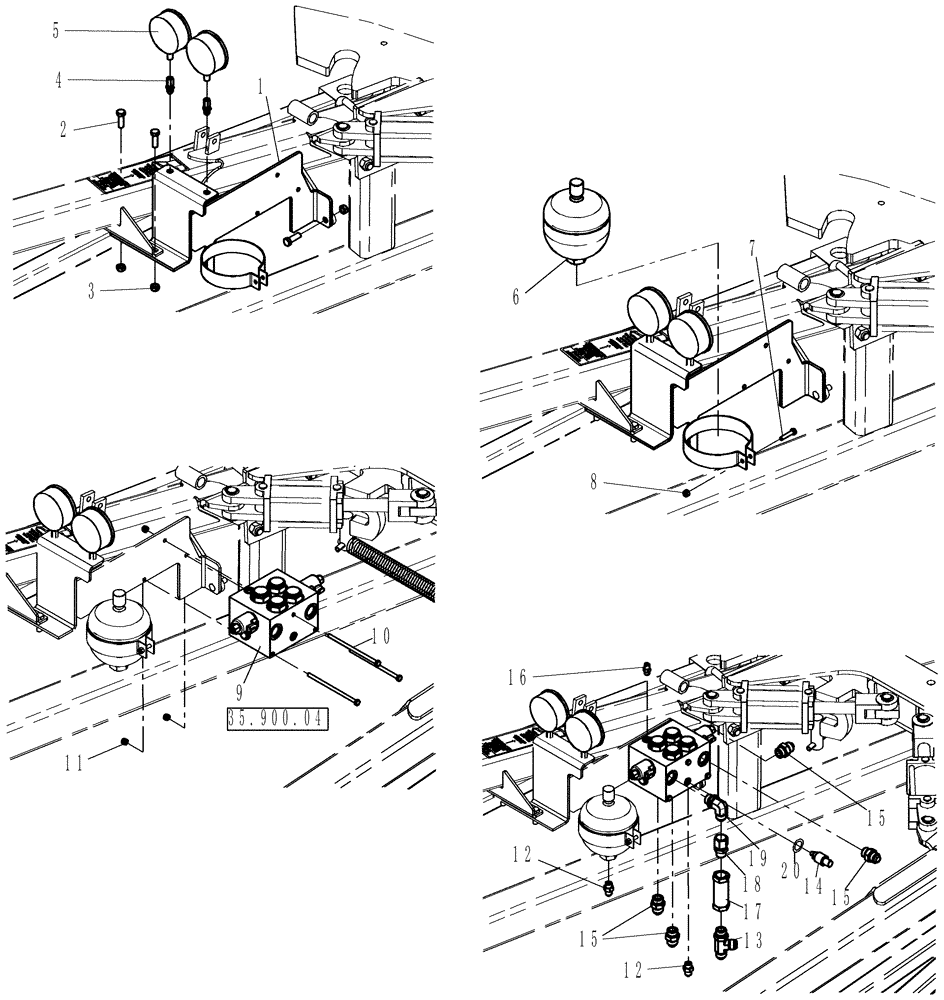

Запчасти Case IH 800 (35.900.01) - HYDRAULIC ACCUMULATOR (35) - HYDRAULIC SYSTEMS

1

84169690

MOUNT

Valve and Accumulator

1шт.

2

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

3

86992215

LOCK NUT,1/2"-13, GC

2шт.

4

87481325

FITTING

3/8" mj x 1/4" fp

2шт.

5

87719886

OIL PRESSURE GAUGE

0 - 3000 psi

2шт.

6

87705954

ACCUMULATOR

1.4L

1шт.

7

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

1шт.

8

280736

NUT,5/16"-18, GC

1шт.

9

84167341

VALVE, PRESSURE CONT

Hydraulic Electro Assembly

1шт.

Refer to 35.900.04

1шт.

10

85807859

BOLT,Hex, 5/16" - 18 x 6 1/2", Gr 5

3шт.

11

280736

NUT,5/16"-18, GC

3шт.

12

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

2шт.

13

219604

TEE,1-1/16" - 12 ORB x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

14

87428328

PRESSURE SWITCH

Hydraulic Pressure, 3000 psi

1шт.

15

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

4шт.

16

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

17

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

18

22060

FITTING

hydraulic - straight adapter 3/4" morb x 3/4" fjic

1шт.

19

84243216

CHECK VALVE

3/4" fb

1шт.

20

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

100

84260445

CAUTION DECAL

Warranty Void

1шт.
