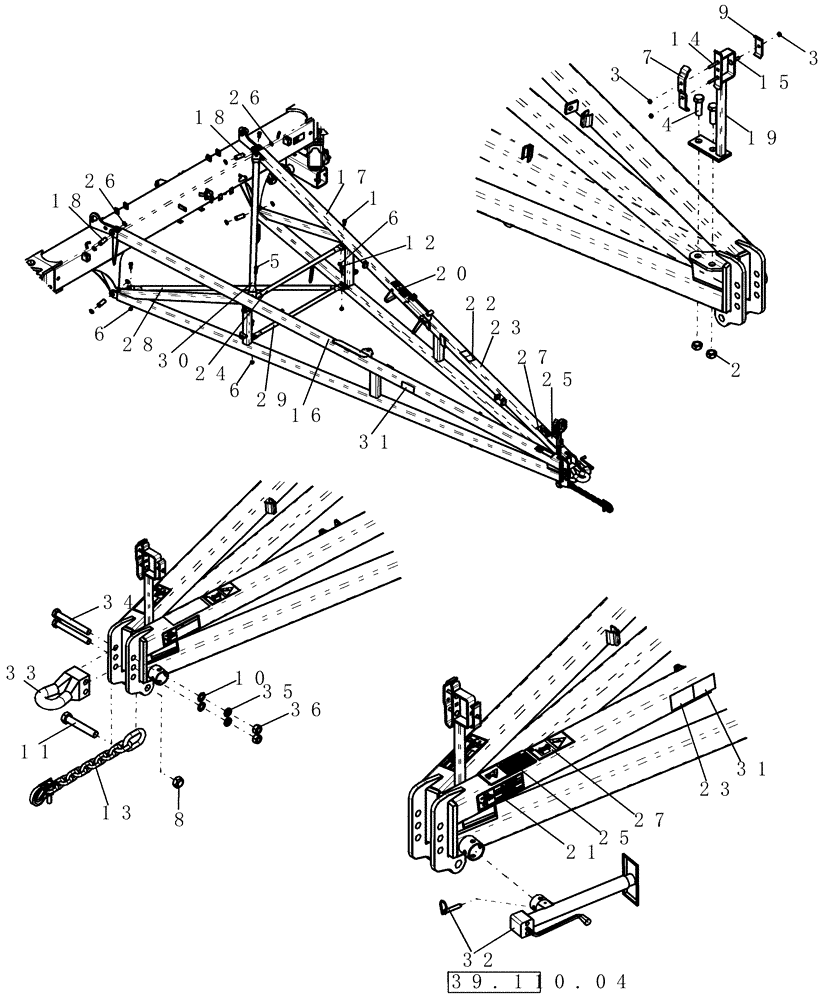

Запчасти Case IH 800 (39.110.01) - HITCH ASSEMBLY (39) - FRAMES AND BALLASTING

1

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

4шт.

2

280286

NUT,1"-8, GB

2шт.

3

88902

NUT,3/8"-16

3шт.

4

84128

BOLT,Hex, 1" x 3", Gr 5

2шт.

5

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

6

280375

NUT,3/4"-10, GC

6шт.

7

GL-813

CLAMP

hydraulic hose

1шт.

8

86609684

NUT,1 1/4"-7, GB

1шт.

9

CC-106

HOSE CLAMP

for 4 hoses

1шт.

10

6669

WASHER,1.06" ID x 1.75" OD x 0.13" Thk

2шт.

11

87552232

BOLT,Hex, 1 1/4" - 7 x 7 1/2", Gr 5

1шт.

12

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

1шт.

13

GR-457A

CHAIN (AG)

assembly, safety 60,600 lb

1шт.

14

9504

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2.50", Gr 5

2шт.

15

280661

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

1шт.

16

87502366

HITCH

70' RH, Red

1шт.

17

87493251

HITCH

70' LH, Red

1шт.

18

87420080

HEADLESS PIN

1 1/2" x 3 15/32" ul

4шт.

19

87503842

CARRIER

hydraulic hose

1шт.

20

87492373

DECAL

center lockshaft

1шт.

21

87503801

CAUTION DECAL

negative hitch weight

2шт.

22

87503802

DECAL

fold zone stay clear

1шт.

23

87503829

DECAL

rollover hazard

1шт.

24

87565830

SUPPORT

front hitch cross

1шт.

25

GD-500.77

CAUTION DECAL

hydraulics

1шт.

26

86632531

SNAP RING,#150, Ext

8шт.

27

182270A1

WARNING DECAL

Do Not Ride

1шт.

28

87503834

SUPPORT

crossmember hitch

1шт.

29

87503837

SUPPORT

crossmember hitch

1шт.

30

87503845

SUPPORT

front hitch long

1шт.

31

87503802

DECAL

fold zone stay clear

1шт.

32

7972

JACK

3000 lb x 15" long

1шт.

Refer to 39.110.04

1шт.

33

87506220

HITCH

hitch

1шт.

33

84471082

HITCH

CAT 4,5, Not Shown

1шт.

34

87020629

BOLT,Hex, 1" - 8 x 8 1/2", Gr 8

2шт.

35

87342

LOCK WASHER,25.48mm ID x 42.06mm OD x 6.35mm Thk

2шт.

36

86511609

NUT,1"-8, G8

2шт.
