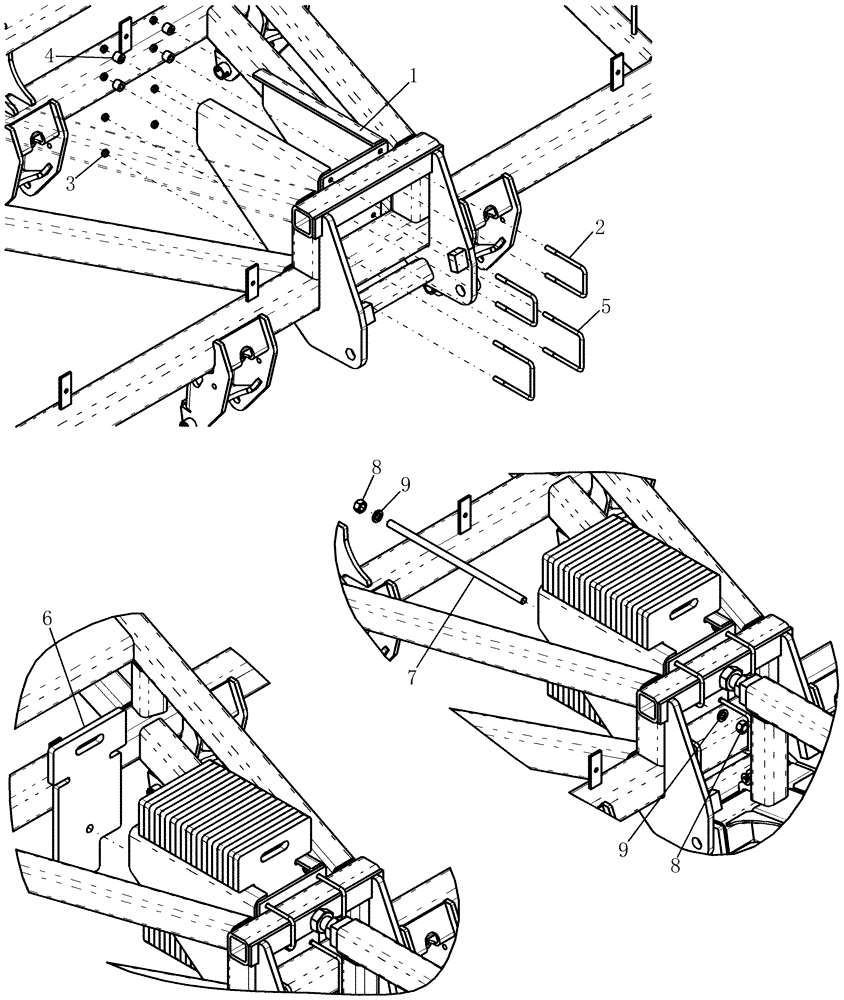

Запчасти Case IH 800 (39.100.41) - WING WEIGHTS (39) - FRAMES AND BALLASTING

1

84165215

RACK

Weight, 700 Pound

1шт.

15' wing frames

1шт.

1

84165209

RACK

Weight, 350 Pound

1шт.

10' wing frames

1шт.

2

8980

U-BOLT

us 7/16"-14 3 1/8" w 5 1/2" d G5

2шт.

3

280980

NUT,7/16"-14, GC

8шт.

4

84165223

PIPE

Spacer

4шт.

5

5089

U-BOLT

us 7/16"-14 4 1/8" w 5 3/8" d GR2

2шт.

6

84165220

BAR

Weight, 30 Pound

20шт.

15' wing frames

1шт.

6

84165217

BAR

Weight, 20 Pound

15шт.

10' wing frames

1шт.

7

84165225

THREADED ROD

Weight Lock

1шт.

15' wing frames

1шт.

7

84165224

THREADED ROD

Weight Lock

1шт.

10' wing frames

1шт.

8

280954

NUT,3/4"-10, G5

2шт.

9

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.
