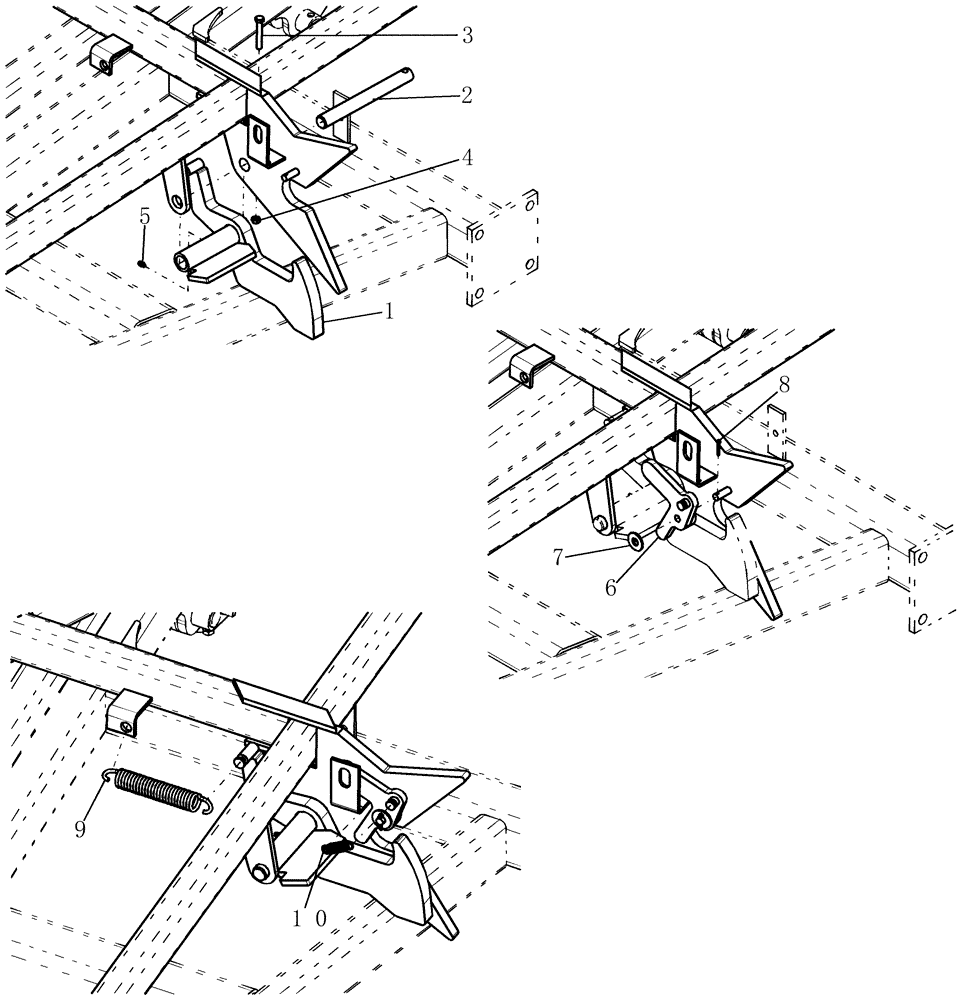

Запчасти Case IH 800 (39.100.39) - TRANSPORT LATCH LH (39) - FRAMES AND BALLASTING

1

84174372

LATCH HOOK

Boom Transport LH

1шт.

2

87420294

PIN

25.4 x 222 ul

1шт.

3

280259

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

1шт.

4

88902

NUT,3/8"-16

1шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

6

84247969

ARM

Sensor Target LH

1шт.

7

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

1шт.

8

80755

COTTER PIN,1/8" OD x 1" L

1шт.

9

87505478

TENSION SPRING

7/32" wire 1 1/4" od x 6" long

1шт.

10

84258731

TENSION SPRING

.068 Wire x 1/2" od x 2.5" Long

1шт.
