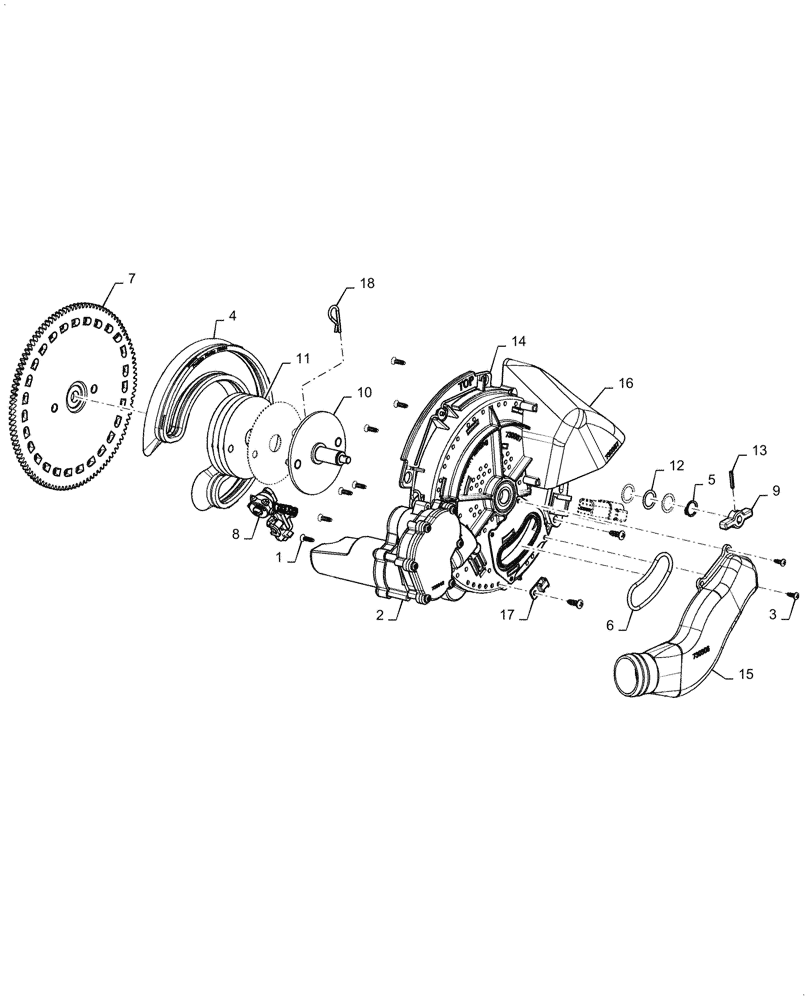

Запчасти Case IH PRECISION PLANT (88.100.06[21]) - PRECISION PLANTING SUB-ASSEMBLY OF METER WITH V DRIVE MOTOR

1

47756356

SCREW

6-32 X .5 THD CUTTING FLAT HEAD PHILLIPS ZN

4шт.

2

73368301

KIT,VDRIVE MOTOR ASSY

1шт.

3

47756330

SCREW

#6-19 X 3/8 PHILLIPS PAN HD HI-LO

7шт.

4

47727613

SEAL

VACUUM

1шт.

5

103-1150

SNAP RING,#50, Ext

1шт.

6

73368523

SEAL

Vacuum Elbow

1шт.

7

73368257

KIT,Corn Disk

1шт.

8

73368259

KIT,Corn Ejector Assy

1шт.

9

73368524

ADAPTER

Mechanical Drive

1шт.

10

73368525

DRIVER

Center

1шт.

11

47722560

SHIM

Disk

4шт.

12

47773776

SHIM

Center Shaft

3шт.

13

70916018

LOCK PIN,2.38mm OD x 15.88mm L, Slotted

1шт.

14

73368526

HOUSING

Mechanical

1шт.

15

73368527

HOSE

Vacuum Elbow

1шт.

16

73368528

VENT

Snorkle

1шт.

17

73368530

WIRE HARNESS,CONNECTOR MOUNT ASSEMBLY

2шт.

18

47772150

PIN

Cotter

1шт.
