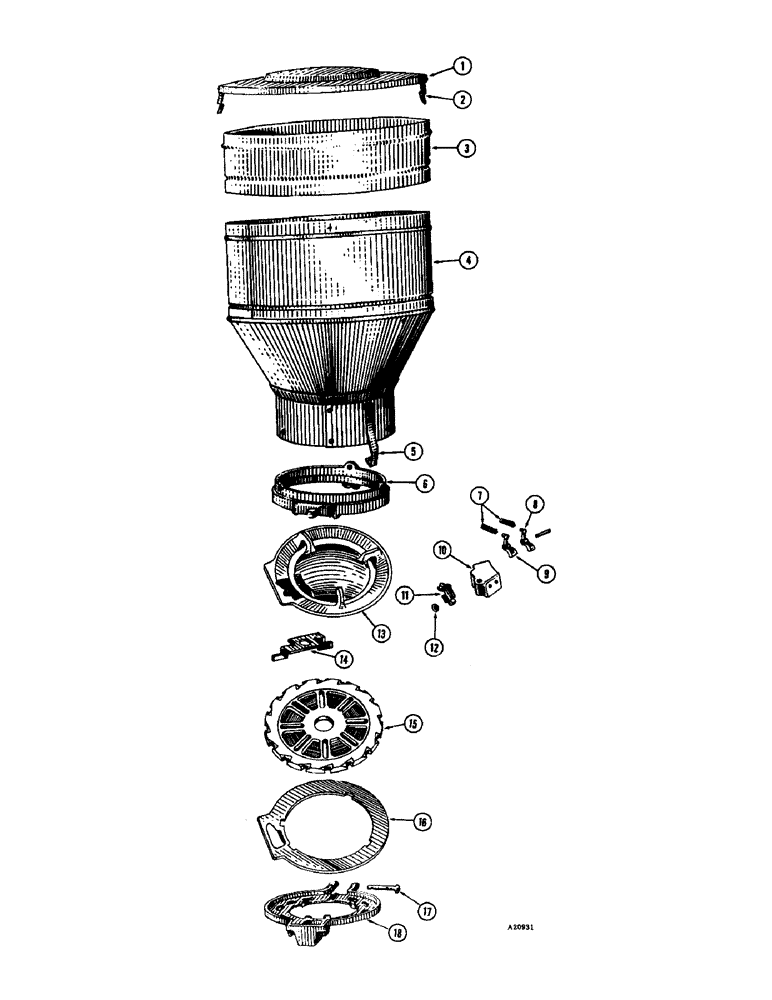

Запчасти Case IH K160 (11A) - SEED HOPPER, C SERIES PLASTIC PLATES, SINGLE HOPPER

1

T25834

COVER - hopper (YR. - 68-)

1шт.

2

P2608S

SPRING - latch, cover (YR. - 68-)

2шт.

45-34

RIVET - 3/16" x 1/4" rd. hd.

2шт.

3

PT2539S

EXTENSION - seed can (YR. - 68-)

1шт.

4

T24334

HOPPER (YR. - 68-)

1шт.

5

T22389

SPRING - floor plate latch (YR. - 68-)

1шт.

147-27

RIVET - 5/32" x 1/4" rd. hd.

2шт.

6

T1663

RING - can adapter (YR. - 68-)

1шт.

75-49

SCREW - machine, 1/4" x 9/16" rd. hd.

3шт.

25-104

NUT,1/4"-20, G5

3шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

7

341EB

SPRING - cutoff and knocker (YR. - 68-)

2шт.

8

T2158

CUTOFF - inside (YR. - 68-)

1шт.

138-101

LOCK PIN,3/16" x 1 5/8", Slotted

PIN, LOCK, 3/16" x 1 5/8", Slotted

1шт.

9

T2159

CUTOFF - outside (YR. - 68-)

1шт.

10

T2156

CAP - cutoff and knockout (YR. - 68-)

1шт.

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

1шт.

25-104

NUT,1/4"-20, G5

1шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

181-403

SETSCREW - #10 x 5/8" oval pt., sq. hd Sq Hd, #10-24 x 5/8"

2шт.

11

T2157

ARM - knockout (YR. - 68-)

1шт.

12

PT2626S

ROLLER

- knockout (YR. - 68-69)

1шт.

12

T39718

ROLLER - knockout (YR. - 69-)

1шт.

13

T2160

BOTTOM - corn (YR. - 68-)

1шт.

14

T38128

COMPRESSION SPRING

PLATE - adapter drive (YR. - 68-)

1шт.

15

PLATE - 16 cell, plastic "C" series (YR. - 68-)

1шт.

Plastic plates can be obtained from your Case dealer or from Lincoln Ag-Products Co., 500 North 66th St., Lincoln, Nebraska - 68505.

1шт.

16

T2161

FLOOR

RING - floor (YR. - 68-)

1шт.

17

PT2746S

PIN - hinge (YR. - 68-)

1шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

18

T1664

PLATE - floor (YR. - 68-)

1шт.
