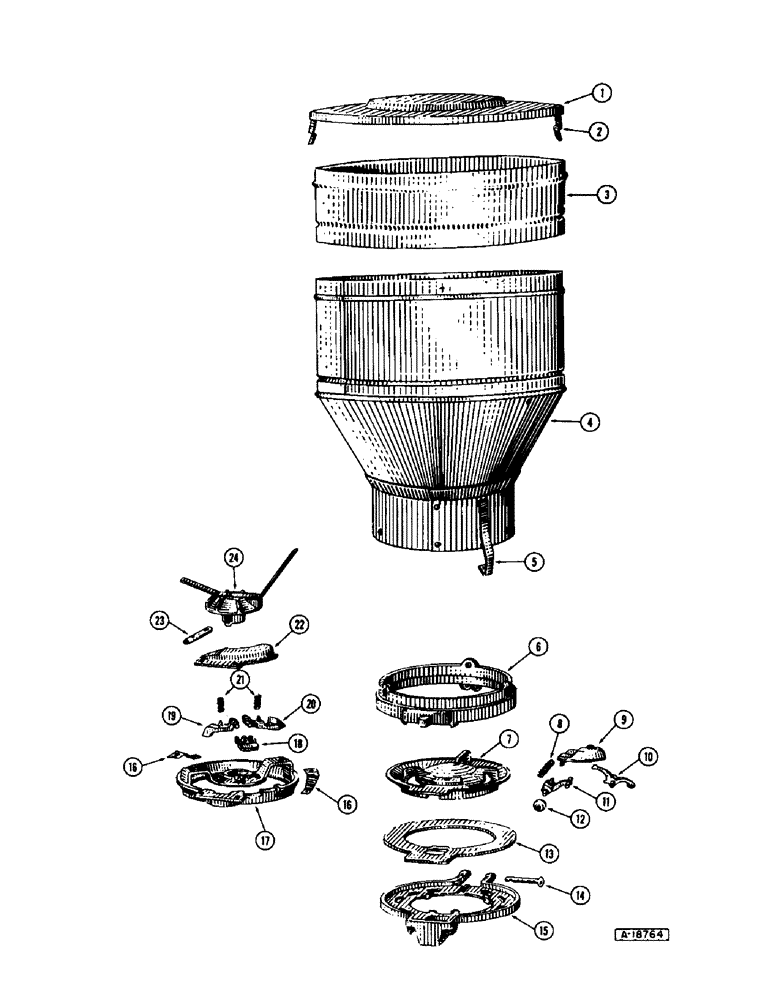

Запчасти Case IH K160 (10) - SEED HOPPER, SINGLE HOPPER CORN, SINGLE HOPPER COTTON

1

T25834

COVER - hopper (YR. - 65-)

1шт.

2

P2608S

SPRING - cover latch (YR. - 65-)

2шт.

45-34

RIVET - 3/16" x 1/4", rd. hd.

2шт.

3

PT2539S

EXTENSION - seed can (YR. - 65-)

1шт.

4

T24334

HOPPER (YR. - 65-)

1шт.

5

T22389

SPRING - floor plate latch (YR. - 65-)

1шт.

147-27

RIVET - 5/32" x 1/4", round head

2шт.

6

T1663

RING - can adapter (YR. - 65-)

1шт.

75-49

SCREW - machine, 1/4" x 9/16" N.C. rd. hd.

3шт.

25-104

NUT,1/4"-20, G5

3шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

7

T1974

BOTTOM

- corn (Single hopper corn) (YR. - 65-)

1шт.

8

341EB

SPRING - cutoff and knocker (Single hopper corn) (YR. - 65-)

1шт.

9

PT424

CAP - cutoff and knocker (Single hopper corn) (YR. - 65-)

1шт.

73-428

SCREW - machine, 1/4" x 1-3/4", c/sunk hd. (Single hopper corn) Slotted Flat Hd, 1/4"-20 x 1 3/4"

1шт.

25-104

NUT,1/4"-20, G5

(Single hopper corn) 1/4"-20, G5

1шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (Single hopper corn) 1/4"

1шт.

10

T2191

CUTOFF - corn (Replaces T1977) (Single hopper corn) (YR. - 69-)

1шт.

11

PT421

KNOCKOUT (Single hopper corn) (YR. - 65-)

1шт.

12

PT2626S

ROLLER

- knockout (Single hopper corn) (YR. - 65-69)

1шт.

12

T39718

ROLLER - knockout (Sinlge hopper corn) (YR. - 69-)

1шт.

13

T1975

OIL SEAL

RING - floor (See T2161) (YR. - 65-68)

1шт.

13

T2161

FLOOR

RING - floor (See page 11A) (YR. 68-)

1шт.

14

PT2746S

PIN - hinge (YR. - 65-)

1шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

15

T1664

PLATE - floor (YR. - 65-)

1шт.

16

T22404

SPRING - pressure seed plate (Single hopper cotton) (YR. - 65-)

2шт.

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

(Single hopper cotton) Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

25-104

NUT,1/4"-20, G5

(Single hopper cotton) 1/4"-20, G5

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (Single hopper cotton) 1/4"

2шт.

17

T1668

BOTTOM - cotton (Single hopper cotton) (YR. - 65-)

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, 1/4" - 28 x 15/32" str. (Single hopper cotton)

1шт.

18

T1671

SUPPORT - cutoff and knocker (Single hopper cotton) (YR. - 65-)

1шт.

19

T1672

CUTOFF (Single hopper cotton) (YR. - 65-)

1шт.

20

T1737

KNOCKOUT (Single hopper cotton) (YR. - 65-)

1шт.

21

110EB

SPRING - cutoff and knockout (Single hopper cotton) (YR. - 65-)

2шт.

22

T1669

CAP - cutoff (Single hopper cotton) (YR. - 65-)

1шт.

171-100

SCREW,Sl Flat Hd, #10 - 24 x 3/4"

- machine, 10-24 x 3/4", flat hd. (Single hopper cotton)

2шт.

129-7

NUT,Hex, #10 - 24

- #10 (Single hopper cotton)

2шт.

92-3

LOCK WASHER,#10

WASHER, LOCK, (Single hopper cotton) #10

2шт.

23

T22402

PIN - agitator drive (Single hopper cotton) (YR. - 65-)

1шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (Single hopper cotton)

2шт.

24

T22405

AGITATOR (Single hopper cotton) (YR. - 65-)

1шт.

195-2151

WASHER,1 13/16" x 2 1/2" x .065"

- 2-1/2" x 1-13/16" x 16 ga (Single hopper cotton)

1шт.
