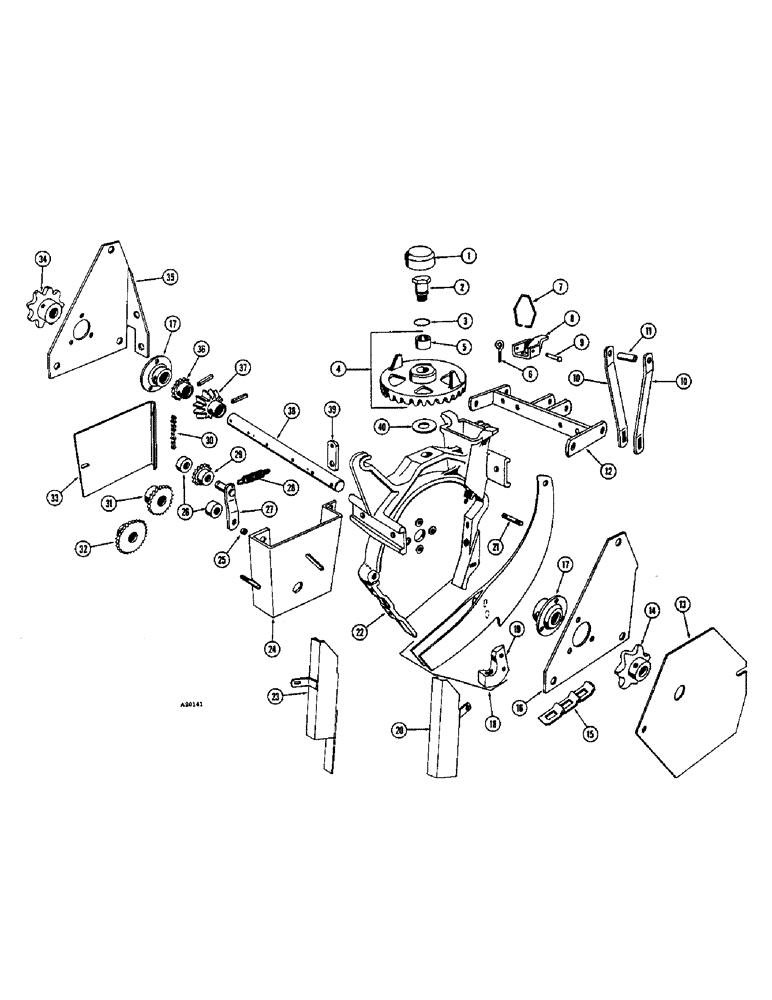

Запчасти Case IH K160 (06) - RUNNER FRAME AND HILLDROP IDLER

1

T27863

CAP - dust (YR. - 65-)

1шт.

2

T28663

BOLT - shoulder (YR. - 65-)

1шт.

3

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING (YR. - 65-)

1шт.

4

T28661

GEAR & BEARING ASSEMBLY (Cstg. T1923) (YR. - 65-)

1шт.

5

T28756

BEARING

(YR. - 65-)

1шт.

6

T22382

EYEBOLT - latch (YR. - 65-)

1шт.

7

T22383

SPRING - latch (YR. - 65-67)

1шт.

7

T37769

SPRING - latch (Use T39992) (YR. - 67-)

1шт.

7

T39992

SPRING - latch (YR. - 69-)

1шт.

8

T1658

HANDLE - latch (YR. - 65-)

1шт.

9

T22513

RIVET - 1/4" x 1-1/4", rd. hd., drilled (YR. - 65-)

1шт.

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

10

T28638

BRACE - runner (YR. - 65-)

2шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, (Braces to runner) Short NK, 3/8"-16 x 1", G2

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

1шт.

92-6

LOCK WASHER,3/8"

1шт.

13-748

BOLT,Hex, 7/16" - 14 x 3", Gr 5

- 7/16" x 3" N.C. hex (Braces to frame)

1шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex

1шт.

92-7

LOCK WASHER,7/16"

1шт.

11

O2585AB

SPACER - runner braces (YR. - 65-)

1шт.

12

T28665

CROSSPIECE (YR. - 65-)

1шт.

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(Crosspiece to hsg.) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2" x 1-3/4" N.C. hex (Crosspiece hsg. front)

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

4шт.

92-8

LOCK WASHER,1/2"

4шт.

13

T28660

PLATE - cover (YR. - 1965)

1шт.

13

T34833

PLATE - cover (YR. - 66-)

1шт.

129-419

WING NUT,5/16"-18

NUT - wing, 5/16" N.C.

1шт.

92-5

LOCK WASHER,5/16"

1шт.

14

T1546

SPROCKET - 7 tooth (YR. - 65-)

1шт.

132-152

PIN

- cotter, 1/4" x 1-3/4"

1шт.

15

CHAIN - drive (62 links #32 steel) Make from B15927 - 10 ft. roll) (YR. - 65-)

1шт.

B15927

CHAIN (AG)

CHAIN - steel (10 ft. or 104 links of #32) (YR. - 65-)

1шт.

16

T28678

PLATE - upright, R.H. (YR. - 65-)

1шт.

17

T28662

BEARING - gear bed (YR. - 65-)

2шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

6шт.

92-5

LOCK WASHER,5/16"

6шт.

18

T28633

RUNNER ASSEMBLY (YR. - 65-)

1шт.

46-522

RIVET - 5/16" x 1-3/8" countersunk hd.

2шт.

19

T1921

BRACKET - runner (YR. - 65-)

1шт.

13-772

BOLT,Hex, 7/16" - 14 x 4-1/2", Gr 5

1шт.

25-227

NUT - 7/16" N.C. square Sq, 7/16"-14

1шт.

20

T28657

TUBE - seed (Use T34878) (YR. - 1965)

1шт.

21

T28656

STUD (YR. - 65-)

1шт.

25-145

JAM NUT,Jam, 5/16"-18, G5

- 5/16" N.C. hex jam

1шт.

22

T1922

HOUSING - hilldrop (YR. - 65-68)

1шт.

22

T2176

HOUSING - hilldrop (YR. - 69-)

1шт.

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

1шт.

23

T34878

TUBE - seed (YR. - 66-)

1шт.

24

T28715

SHIELD - hilldrop chain (YR. - 65-66)

1шт.

24

T34790

SHIELD - hilldrop chain (YR. - 67-)

1шт.

25

O382SC

BUSHING - ilder (YR. - 65-)

1шт.

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

(Idler to shield) Hex, 3/8"-16 x 2 1/4", G5

1шт.

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

195-104

WASHER,3/8"

- 1" x 7/16" x 14 ga. Z.P.

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

26

T30161

ROLLER - idler (YR. - 65-)

2шт.

195-104

WASHER,3/8"

- 1" x 7/16" x 14 ga. Z.P.

1шт.

27

T28725

IDLER (YR. - 65-)

1шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

28

101EB

SPRING - idler (YR. - 65-)

1шт.

132-102

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

1шт.

29

T24898

SPROCKET - hilldrop (15 teeth) (YR. - 65-)

1шт.

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

1шт.

30

CHAIN (55 links, 3/8" pitch #35 roller chain) (Use (1) B17095, (2) T16500, (1) PT2762S, (2) PT2763S) (YR. - 65-)

1шт.

B17095

CHAIN (AG)

LINK - roller (50 links #35 chain)

1шт.

T16500

LINK

- offset, #35 roller chain

2шт.

PT2762S

LINK

- connecting, #35 roller chain

1шт.

PT2763S

LINK - roller, #35 roller chain

2шт.

31

T28719

SPROCKET - hilldrop (20 teeth) (YR. - 65-)

1шт.

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

1шт.

32

T28720

SPROCKET - hilldrop (30 teeth) (YR. - 65-)

1шт.

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

1шт.

33

T28752

COVER - chain shield (YR. - 65-)

1шт.

129-404

WING NUT,1/4"-20

NUT - wing, 1/4"

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

34

T1547

SPROCKET - 8 tooth (YR. - 65-)

1шт.

34

T2148

SPROCKET - 11 tooth (Optional as parts) (YR. - 65-)

1шт.

34

T1441

SPROCKET - 13 tooth (YR. - 68-)

1шт.

35

T28679

PLATE - upright, L.H. (YR. - 65-)

1шт.

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5 (Upright frame - front)

2шт.

13-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

Upright frame - side Hex, 7/16"-14 x 1 3/4", G5

2шт.

13-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

Upright frame - wheel Hex, 7/16"-14 x 2", G5

2шт.

195-2045

WASHER,1/2" x 1 1/4" x .134"

- 1-1/4" x 1/2" x 10 ga

2шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex

6шт.

92-7

LOCK WASHER,7/16"

6шт.

36

T28723

SPROCKET - upper (YR. - 65-)

1шт.

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

1шт.

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, , Shaft 1/4" x 1 1/4", Slotted

1шт.

37

T1925

PINION - drive (YR. - 65-)

1шт.

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

38

T28682

SHAFT - gear bed (YR. - 65-)

1шт.

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

195-2084

WASHER,13/16" x 1 1/4" x .067", HDN

- 1-1/4" x 13/16" x 16 ga

1шт.

39

T28722

CLIP - idler spring (YR. - 65-)

1шт.

40

T28664

SHIM - ring gear (YR. - 65-)

1шт.
