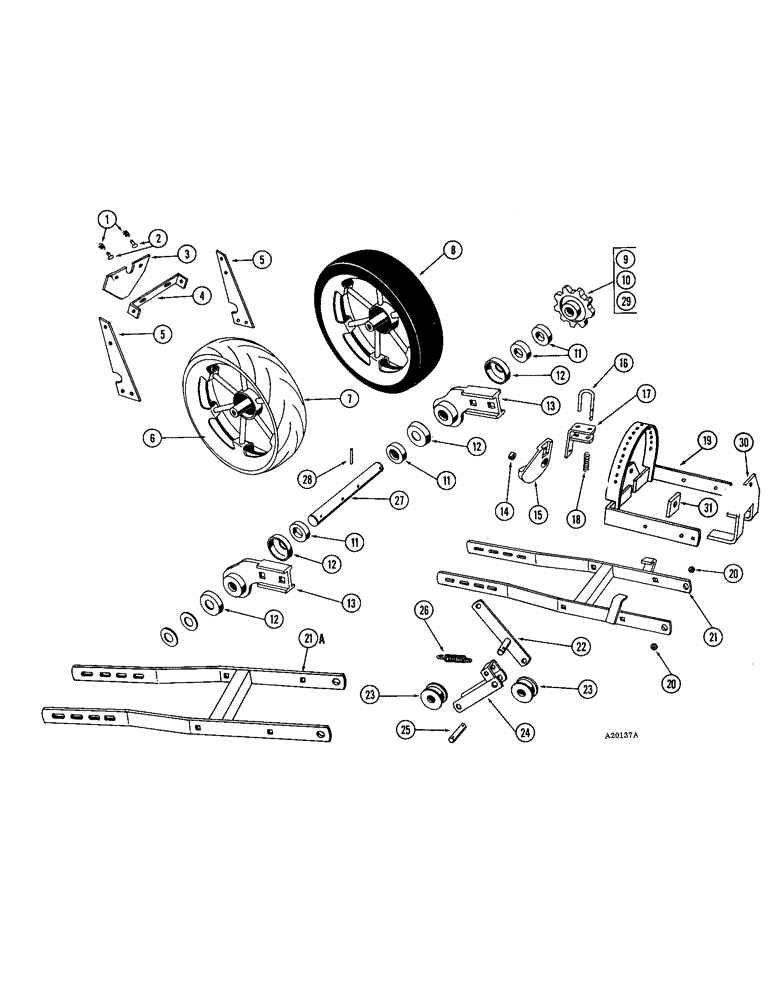

Запчасти Case IH K160 (04) - FRAME ASSEMBLY WITH SCRAPER AND DEPTH CONTROL

1

276EB

SPRING - scraper (YR. - 65-)

2шт.

2

X3298

RIVET - scraper, 5/16" x 1" drilled rd. hd. (YR. - 65-)

2шт.

195-2023

WASHER - 3/4" x 3/8" x 16 ga

2шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

3

T26281

SCRAPER (YR. - 65-)

1шт.

4

T26280

BRACKET - scraper mounting (YR. - 65-)

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

92-6

LOCK WASHER,3/8"

2шт.

5

T26279

FRAME (YR. - 65-)

2шт.

6

T26274

WHEEL - 7 X 18 (YR. - 65-)

1шт.

7

T29018

TIRE - 7 X 18, traction type (Mach. item) (YR. - 65-)

1шт.

8

T26288

TIRE - 7 X 18, semi-pneumatic (Mach. item) (YR. - 65-)

1шт.

9

T1782

SPROCKET - 9 tooth (YR. - 65-)

1шт.

9

T1441

SPROCKET - 13 tooth (YR. - 68-)

1шт.

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

10

T1783

SPROCKET - 14 tooth (YR. - 65-)

1шт.

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

11

T39120

SPACER

(YR. - 69-)

4шт.

11

T26277

SPACER

(YR. - 65-58)

4шт.

12

A30748

WASHER - dust (YR. - 65-)

4шт.

13

T1801

BEARING (YR. - 65-)

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

2шт.

14

LS3037S

BUSHING - depth cam (YR. - 65-)

1шт.

15

T1924

CAM (YR. - 65-)

1шт.

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga.) 1/2"

1шт.

92-8

LOCK WASHER,1/2"

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

1шт.

16

T28677

LATCH (YR. - 65-)

1шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 7/8" x 3/8" x 14 ga

1шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

17

T28674

HANDLE (YR. - 65-)

1шт.

11-620

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT - 3/8" x 1-1/4" cge., w/LW and nut

1шт.

18

341EB

SPRING - compression (YR. - 65-)

1шт.

19

T28669

FRAME ASSEMBLY (YR. - 65-)

1шт.

20

T24891

BUSHING - wheel frame bolts (YR. - 65-69)

2шт.

20

T39053

BUSHING - wheel frame bolts (YR. - 69-)

2шт.

21

T28637

FRAME - press wheel (Use T35390) (YR. - 65-66)

1шт.

21

T35390

FRAME - press wheel (YR. - 67-69)

1шт.

21a

T39172

FRAME - press wheel (YR. - 69-)

1шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga.) 1/2"

4шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- 1/2" x 1-1/2" cge., w/LW and nut

5шт.

22

T28645

ARM - idler (YR. - 65-)

1шт.

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

23

PT373

ROLLER - idler (YR. - 65-)

2шт.

24

T28648

IDLER ASSEMBLY (YR. - 65-)

1шт.

25

T28651

PIN - idler (YR. - 65-)

1шт.

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

26

79EB

SPRING - idler (YR. - 65-)

1шт.

27

T27419

AXLE (YR. - 65-)

1шт.

195-45

WASHER,3/4"

2шт.

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

28

T37104

PIN - press wheel (Replaces T26276) (YR. - 65-)

1шт.

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

1шт.

29

T2148

SPROCKET - 11 tooth (Optional as parts) (YR. - 68-)

1шт.

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

30

T39170

HOOK - transport (Use w/T39172) (YR. - 69-)

1шт.

31

T39171

SPACER

- transport hook (YR. - 69-)

1шт.
