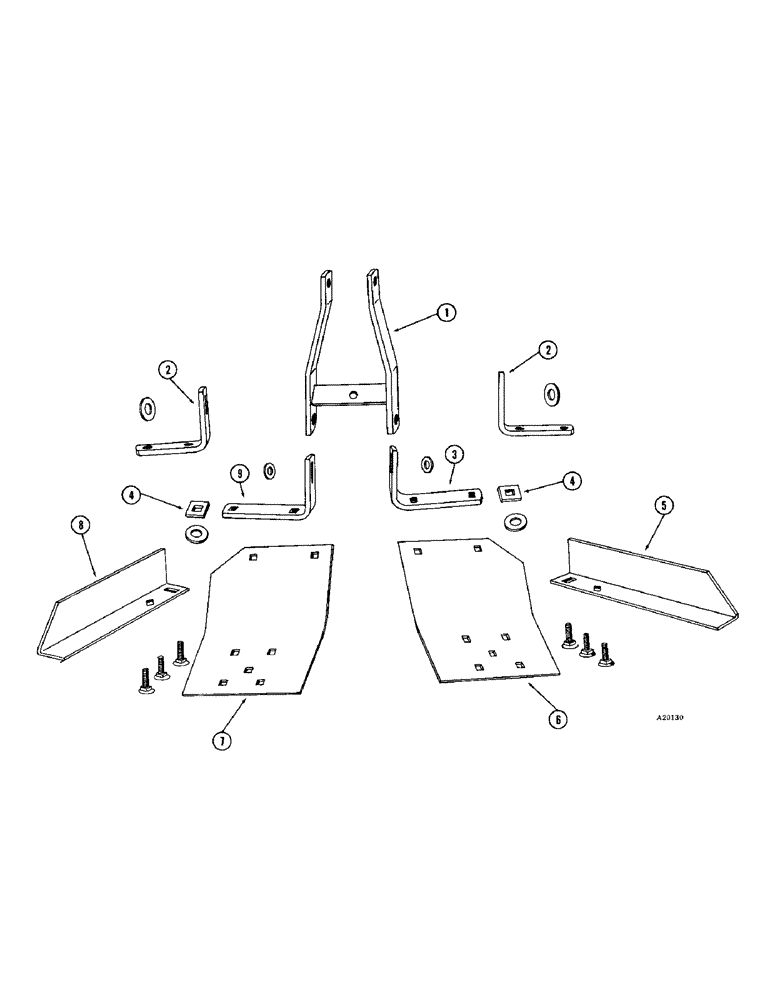

Запчасти Case IH K160 (46) - GAUGE SHOE

1

T28684

BRACE (YR. - 65-)

1шт.

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

Housing Hex, 7/16"-14 x 1 1/4", G5, Full Thd

1шт.

13-760

BOLT,Hex, 7/16" - 14 x 3-3/4", Gr 5

Frame Hex, 7/16"-14 x 3 3/4", G5

1шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex

2шт.

92-7

LOCK WASHER,7/16"

2шт.

2

PTA1732S

BRACKET - connecting, rear (YR. - 65-)

2шт.

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

2шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex

2шт.

92-7

LOCK WASHER,7/16"

2шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga

2шт.

3

PT2468S

BRACKET - connecting, front, R.H. (YR. - 65-)

1шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" x 2" N.C. hex (Runner)

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

1шт.

92-6

LOCK WASHER,3/8"

1шт.

195-2032

WASHER - 1" x 7/16" x 16 ga

1шт.

4

PT1733S

BLOCK - filler (YR. - 65-)

2шт.

5

PTA1736S

WING - sweep, R.H. (YR. - 65-)

1шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga

1шт.

6

PT2470S

SHOE - gauge, R.H. (YR. - 65-)

1шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

118-201

X

BOLT - 7/16" x 1-1/4" plow, P3

3шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex

3шт.

92-6

LOCK WASHER,3/8"

2шт.

92-7

LOCK WASHER,7/16"

3шт.

7

PT2471S

SHOE - gauge, L.H. (YR. - 65-)

1шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

118-201

X

BOLT - 7/16" x 1-1/4" plow, P3

3шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex

3шт.

92-6

LOCK WASHER,3/8"

2шт.

92-7

LOCK WASHER,7/16"

3шт.

8

PTA1737S

WING - sweep, L.H. (YR. - 65-)

1шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga

1шт.

9

PT2469S

BRACKET - connecting, front, L.H. (YR. - 65-)

1шт.

195-2032

WASHER - 1" x 7/16" x 16 ga

1шт.
