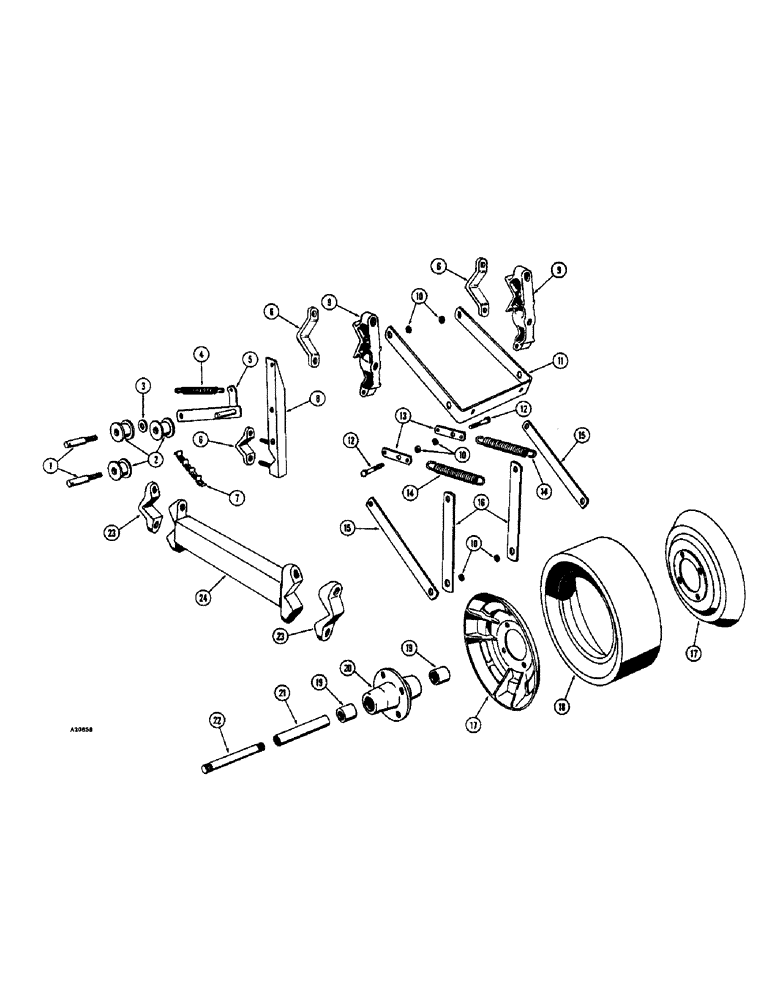

Запчасти Case IH K160 (44) - FERTILIZER PRESS WHEEL, PER ROW

1

T27831

PIN - idler roller (YR. - 66-)

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

92-8

LOCK WASHER,1/2"

2шт.

195-2057

WASHER - 1-1/4" x 9/16" x 12 ga

2шт.

195-2075

WASHER,11/16" x 1 1/2" x 109"

- 1-1/2" x 11/16" x 12 ga

2шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

2

PT373

ROLLER - idler (YR. - 66-)

3шт.

3

TD3879

BUSHING - idler pin (YR. - 66-)

1шт.

4

24EB

SPRING - idler (YR. - 66-)

1шт.

5

T27840

ARM - idler (YR. - 66-)

1шт.

195-2075

WASHER,11/16" x 1 1/2" x 109"

- 1-1/2" x 11/16" x 12 ga

1шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

6

T17751

CLAMP (YR. - 66-)

3шт.

7

CHAIN - drive (96 links #32 steel) Make from B15927 - 10 ft. roll (YR. - 66-)

1шт.

B15927

CHAIN (AG)

CHAIN - steel (10 ft. or 104 links #32) (YR. - 66-)

1шт.

8

T34866

SUPPORT - idler (YR. - 66-)

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

92-8

LOCK WASHER,1/2"

2шт.

9

T2135

HANGER

(YR. - 66-)

2шт.

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

4шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

4шт.

92-8

LOCK WASHER,1/2"

4шт.

10

F17520

BUSHING (YR. - 66-)

6шт.

11

T34858

LINK - upper (YR. - 66-0

1шт.

13-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

2шт.

230-4117

LOCK NUT,7/16"-14, GA

LOCKNUT - 7/16"

2шт.

195-2045

WASHER,1/2" x 1 1/4" x .134"

- 1-1/4" x 1/2" x 10 ga

2шт.

12

13-744

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

(YR. - 66-) Hex, 7/16"-14 x 2 3/4", G5

2шт.

230-4117

LOCK NUT,7/16"-14, GA

LOCKNUT - 7/16"

4шт.

195-2045

WASHER,1/2" x 1 1/4" x .134"

- 1-1/4" x 1/2" x 10 ga

2шт.

13

T26267

BRACKET - spring (YR. - 66-)

2шт.

14

224GD

SPRING - tension (YR. - 66-)

2шт.

15

T34869

ARM - press wheel (YR. - 66-)

2шт.

16

T34868

ARM - upper (YR. - 66-)

2шт.

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

2шт.

230-4117

LOCK NUT,7/16"-14, GA

LOCKNUT - 7/16"

2шт.

195-2045

WASHER,1/2" x 1 1/4" x .134"

- 1-1/4" x 1/2" x 10 ga

4шт.

17

T2080

WHEEL - half (YR. - 66-)

2шт.

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

9635082

NUT,5/16" - 18, Gr 5

3шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

18

T34861

TIRE - 6:00 X 12 (YR. - 66-)

1шт.

19

T34865

BUSHING - axle (YR. - 66-)

2шт.

20

VR2773

HUB - wheel (YR. - 66-)

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

1шт.

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

21

T34863

PIPE - axle (YR. - 66-)

1шт.

195-2105

WASHER,1 1/16" x 1 3/4" x .065"

- 1-3/4" x 1-1/16" x 16 ga

2шт.

22

T34864

BOLT - axle (YR. - 66-)

1шт.

129-148

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N.C. hex jam, Z.P.

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

23

V16434

CLAMP - extension (YR. - 66-)

2шт.

24

T34860

EXTENSION - tool bar (YR. - 66-)

1шт.

13-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- 3/4" x 4-1/4" N.C. hex

4шт.

25-1012

NUT,3/4"-10, G5

4шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.
