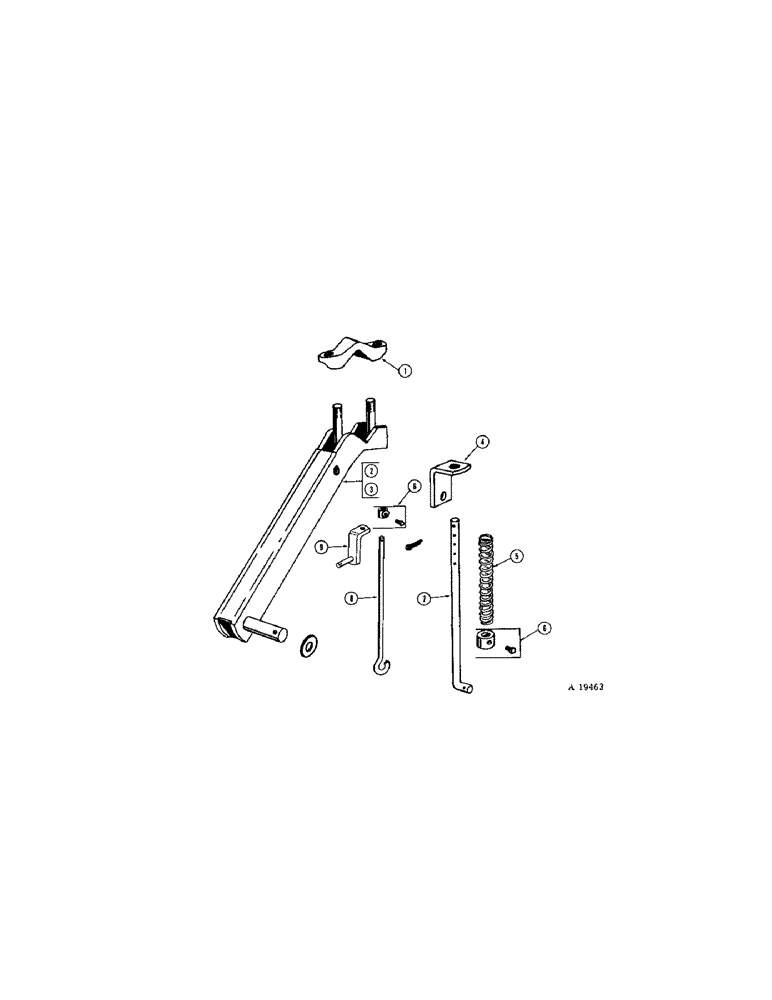

Запчасти Case IH K160 (42[1]) - OPENER SUPPORT PER OPENER

1

V16434

CLAMP - support arm (YR. - 65-)

1шт.

2

T27844

ARM - opener support, R.H. (YR. - 65-)

1шт.

25-1012

NUT,3/4"-10, G5

2шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

195-49

WASHER

- 1-3/4" x 15/16" x 10 ga

1шт.

3

T27851

ARM - opener support, L.H. (YR. - 65-)

1шт.

25-1012

NUT,3/4"-10, G5

2шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

195-49

WASHER

- 1-3/4" x 15/16" x 10 ga

1шт.

4

T27850

ANCHOR - lift rod (YR. - 1965)

1шт.

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2" x 2-1/2" N.C. hex

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

1шт.

92-8

LOCK WASHER,1/2"

1шт.

5

25EB

SPRING

- lift rod (YR. - 65-)

1шт.

6

T60253

COLLAR ASSEMBLY (YR. - 1965)

1шт.

85-612

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SETSCREW - 3/8" x 3/4", sq. hd., C.P.

1шт.

6

T60253

COLLAR ASSEMBLY (YR. - 66-)

2шт.

85-612

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SETSCREW - 3/8" x 3/4", sq. hd., C.P.

2шт.

7

T27849

ROD - lift (YR. - 1965)

1шт.

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

8

T34719

ROD - lift (YR. - 66-)

1шт.

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

9

T34722

ANCHOR - lift rod (YR. - 66-)

1шт.

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.
