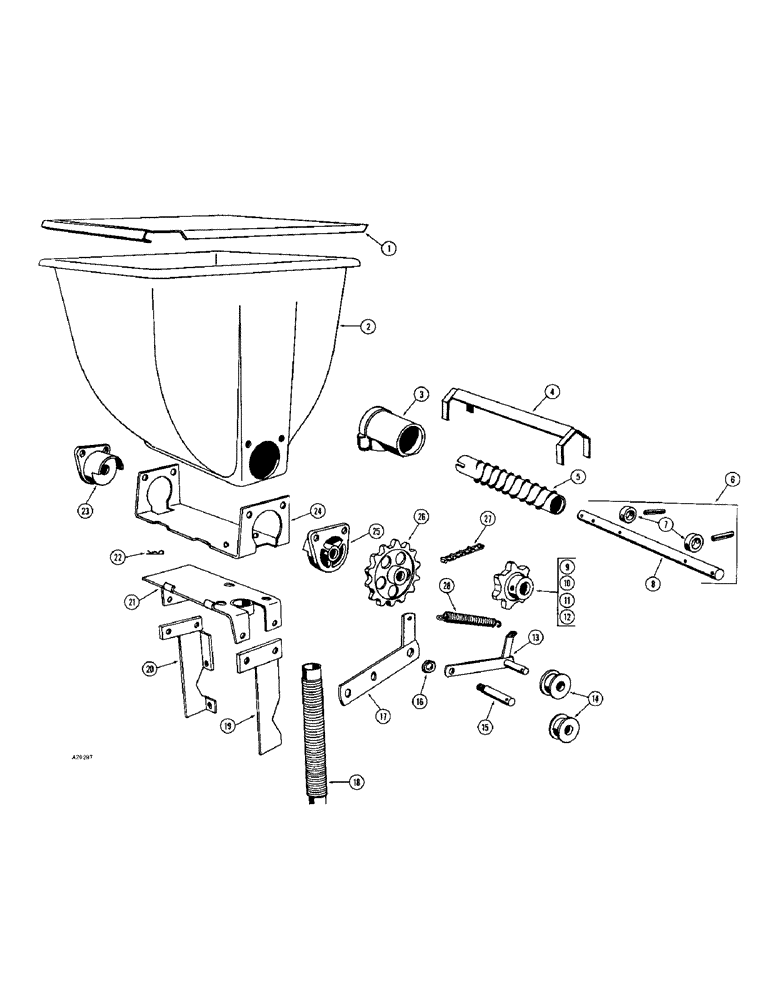

Запчасти Case IH K160 (40) - 150 LB. FERTILIZER ATTACHMENT, PER UNIT

1

T32458

COVER - hopper (YR. - 65-)

1шт.

2

T32441

HOPPER (YR. - 65-)

1шт.

3

T2075

HOUSING - auger (YR. - 1965)

1шт.

3

T2091

HOUSING - auger (YR. - 66-)

1шт.

4

T33555

SHIELD - auger (YR. - 65-)

1шт.

5

T32469

AUGER (YR. - 65-)

1шт.

6

T32450

SHAFT ASSEMBLY - auger (YR. - 65-)

1шт.

7

T32460

COLLAR (YR. - 65-)

2шт.

8

T32446

SHAFT (Use T32450) (YR. - 65-)

1шт.

135-136

ROLLPIN - 1/4" x 1-1/4"

1шт.

138-141

LOCK PIN,1/4" x 1 7/8", Slotted

PIN, 1/4" x 1 7/8", Slotted

1шт.

132-152

PIN

- cotter, 1/4" x 1-3/4"

2шт.

195-45

WASHER,3/4"

2шт.

9

T1546

SPROCKET - 7 tooth (YR. - 65-)

1шт.

10

T1547

SPROCKET - 8 tooth (YR. - 65-)

1шт.

11

T1782

SPROCKET - 9 tooth (YR. - 65-)

1шт.

12

T1441

SPROCKET - 13 tooth (YR. - 65-)

1шт.

12

T2148

SPROCKET - 11 tooth (Optional as parts) (YR. - 65-)

1шт.

13

T27840

ARM ASSEMBLY - idler (YR. - 65-)

1шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

195-2075

WASHER,11/16" x 1 1/2" x 109"

- 1-1/2" x 11/16" x 12 ga

1шт.

14

PT373

ROLLER - idler (YR. - 65-)

2шт.

15

T27831

PIN - idler (YR. - 65-)

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

1шт.

92-8

LOCK WASHER,1/2"

1шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

195-2057

WASHER - 1-1/4" x 9/16" x 12 ga

1шт.

195-2075

WASHER,11/16" x 1 1/2" x 109"

- 1-1/2" x 11/16" x 12 ga

1шт.

16

TD3879

BUSHING - idler arm pivot (YR. - 65-)

1шт.

17

T32467

ARM ASSEMBLY - idler (YR. - 65-)

1шт.

18

T27843

TUBE (YR. - 65-) 1.625 - 2" ID

1шт.

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

19

T32465

BRACKET - mounting, L.H. (YR. - 65-)

1шт.

20

T32466

BRACKET - mounting, R.H. (YR. - 65-)

1шт.

21

T32449

BASE ASSEMBLY (YR. - 65-)

1шт.

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(Base - bracket) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2" x 1-3/4" N.C. hex (Idler - bracket)

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

4шт.

92-8

LOCK WASHER,1/2"

4шт.

22

T20588

PIN, SPLIT (COTTER)

COTTER - hairpin, Z.P. (YR. - 65-)

1шт.

23

T1999

BEARING - auger shaft, R.H. (YR. - 65-)

1шт.

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

2шт.

129-104

NUT,7/16"-14, G5

2шт.

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

195-105

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga., Z.P.

2шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8"

1шт.

24

T32447

SUPPORT ASSEMLBY (YR. - 65-)

1шт.

171-228

SCREW,Sl Flat Hd, 3/8" - 16 x 1"

- machine, 3/8" x 1" flat hd., Z.P.

2шт.

25

T2000

BEARING - auger shaft, L.H. (YR. - 65-)

1шт.

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

2шт.

129-104

NUT,7/16"-14, G5

2шт.

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

195-105

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga., Z.P.

2шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8"

1шт.

26

T1783

SPROCKET - 14 tooth (YR. - 65-)

1шт.

132-152

PIN

- cotter, 1/4" x 1-3/4"

1шт.

27

CHAIN - drive (64 links #32 steel) Make from B15927 - 10 ft. roll (YR. - 65-)

1шт.

B15927

CHAIN (AG)

CHAIN - steel (10 ft. or 104 links #32) (YR. - 65-)

1шт.

28

24EB

SPRING (YR. - 65-)

1шт.
