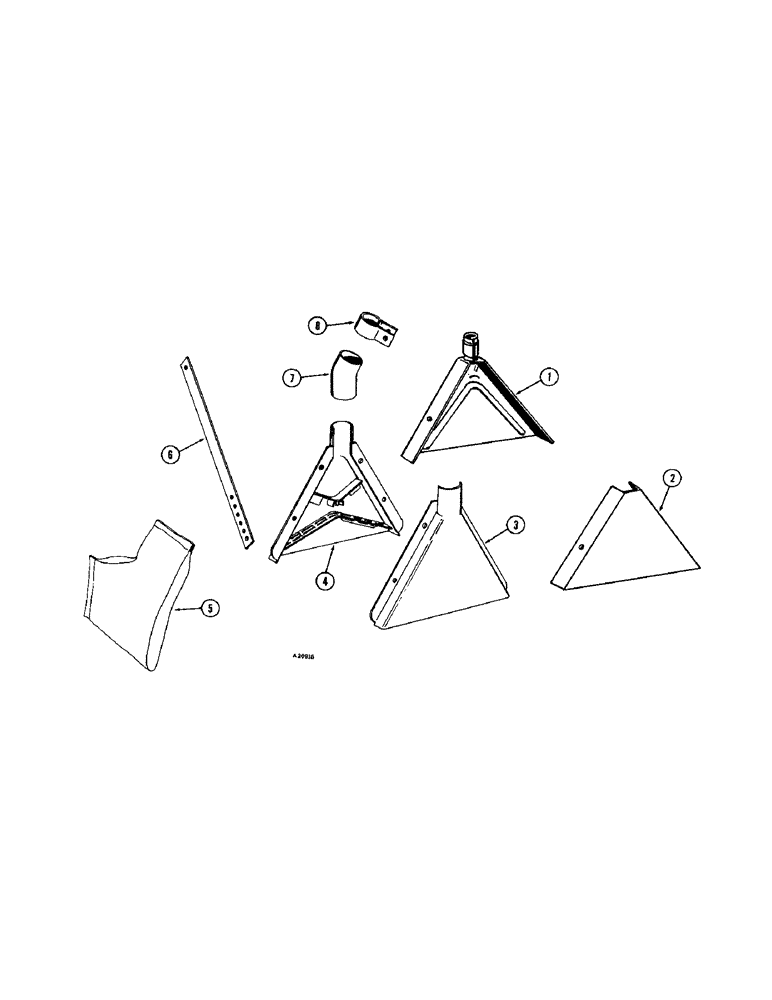

Запчасти Case IH K160 (36[1]) - 7 INCH INSECTICIDE BAND SPREADER PER ROW

1

T28023

SPREADER (Use T62179) (YR. - 65-67)

1шт.

2

T28024

COVER (Use T62179) (YR. - 65-67)

1шт.

168-23

SCREW - sheet metal, #10 x 3/8" rd. hd.

4шт.

3

T37787

COVER (YR. - 67-)

1шт.

75-424

SCREW

- machine, 1/4" x 1-1/2" rd. hd.

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

25-104

NUT,1/4"-20, G5

6шт.

95-4

WASHER,1/4"

- 3/4" x 5/16" x 16 ga

4шт.

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- machine, #10 x 1/2"

2шт.

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

129-7

NUT,Hex, #10 - 24

- #10

2шт.

4

T37788

SPREADER (YR. - 67-)

1шт.

5

T29044

RING ASSY.

HOOD - plastic (YR. - 67-)

1шт.

6

T21436

STRAP - attaching (YR. - 67-)

1шт.

7

T28019

ELBOW (YR. - 67-)

1шт.

8

T28025

CLIP - attaching (YR. - 65-)

1шт.

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

195-102

WASHER,1/4"

- 3/4" x 5/16" x 16 ga Z.P.

1шт.

T62179

SPREADER AND COVER (YR. - 65-67)

1шт.
