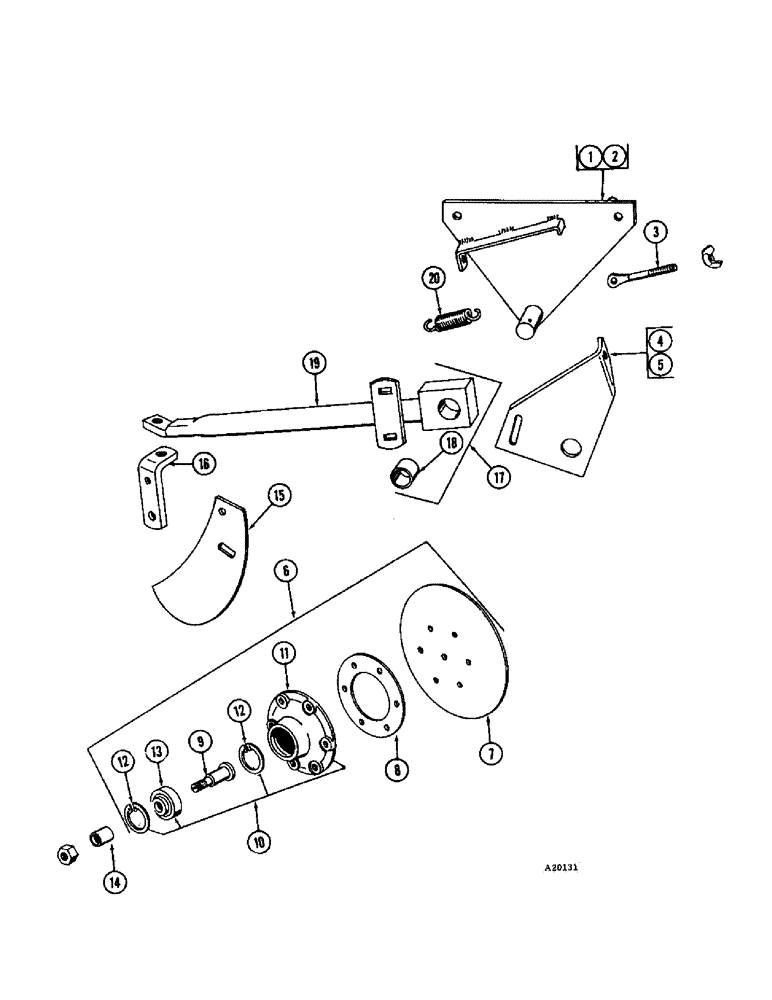

Запчасти Case IH K160 (34) - DISK AND BLADE COVERERS

1

T28739

BRACKET - R.H. (Shown) (YR. - 65-)

1шт.

13-740

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5

1шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex

1шт.

92-7

LOCK WASHER,7/16"

1шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

1шт.

195-2093

WASHER - 1-1/2" x 15/16" x 12 ga

1шт.

2

T28632

BRACKET - L.H. (Hardware same as ref. no. 1) (YR. - 65-)

1шт.

3

PT2277S

EYEBOLT (YR. - 65-)

2шт.

129-419

WING NUT,5/16"-18

NUT - wing, 5/16"

2шт.

4

T28743

PLATE - mounting, R.H. (Shown) (YR. - 65-)

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

1шт.

92-5

LOCK WASHER,5/16"

1шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 7/8" x 3/8" x 14 ga

1шт.

5

T28751

PLATE - mounting, L.H. (Hardware same as ref. no. 4) (YR. - 65-)

1шт.

6

T28737

DISK COVERING ASSEMBLY (YR. - 65-)

2шт.

7

T22457

DISK (YR. - 65-)

1шт.

8

T20151

GASKET

(YR. - 65-)

1шт.

9

T28738

STUD (YR. - 65-)

1шт.

10

T28735

HUB AND BEARING ASSEMBLY (YR. - 65-)

1шт.

11

T1930

HUB (Use T28735) (YR. - 65-)

1шт.

12

T28736

SNAP RING,1.562", Int, #156

Ring, Snap, (YR. - 65-) 1.562", Int, #156

2шт.

13

T20623

BEARING ASSY,0.64" ID x 1.5748" OD x 0.72"

BEARING (YR. - 65-)

1шт.

45-410

RIVET,But Hd, 1/4" x 5/8"

- 1/4" x 5/8" rd. hd.

6шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

1шт.

92-8

LOCK WASHER,1/2"

1шт.

14

V30095

BODY

SPACER (YR. - 65-)

2шт.

15

T26278

BLADE (YR. - 65-)

2шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

4шт.

92-6

LOCK WASHER,3/8"

4шт.

95-6

WASHER,3/8"

- 1" x 7/16" x 14 ga

2шт.

16

T28753

ARM - disk mounting (YR. - 65-)

2шт.

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

92-8

LOCK WASHER,1/2"

2шт.

17

T28744

WASHER

ARM - covering (YR. - 65-)

2шт.

18

T10814

BUSHING (YR. - 65-)

1шт.

19

T28745

ARM (Use T28744) (YR. - 65-)

1шт.

20

198GD

SPRING (YR. - 65-)

2шт.
